Cob Led Strip Led Tape Light CRI90 12v 24v Flexible White Dotless Luces Flip Chip

Basic Information
Place of Origin: Guangdong,China
Brand Name: Miracle Bean
Model Number: XH-cob480
Minimum Order Quantity: 50 metres
Price: negotiate
Packaging Details: According to the latest
Delivery Time: 3-7working days
Payment Terms: Western Union, L/C, D/A, D/P, T/T, MoneyGram,Paypal
Supply Ability: 100000 metres per month
Detail Information
LED Quantity: 480leds/m IP Class: IP20/IP65/IP67/IP68
Power: 9W/M Length: 5M
Material: Copper Warranty: 2 Years
Switch Mode: Bluetooth, Remote Control, Wifi, Manual Button PCB Width: 8mm
Color: Warm White, Cool White,white, Blue, Red,blue Input Voltage(V): DC12V/24V
Beam Angle: 180 Degree Beam Angle Certification: CE, RoHS
Working Lifetime: 30000H CRI (Ra>): 90
High Light:

9W/M Cob Led Strip


8mm PCB Cob Led Strip


480leds/m Flexible Led Tape Light

Product Description

 Cob Led Strip Led Tape Light CRI90 12v 24v Flexible White Dotless Luces Flip Chip


Item Led Cob strip
Model Number XH-XH-COB480
Type COB LED strip series
LED source  led
Storage Temperature -40℃--60℃
Color White/cool white/warm white/red//blue/green
Lighting Angle 180°
Operating Voltage DC12V/24v
Working Lifetime
1.How to buy it ?
You must send a email to us, and mention what you're looking for, the sales will make a Proforma Invoice for you,Or contact my wechat or WhatsApp:+8618679735610
2.How Long will I wait to get a reply after inquiry?
Our sales team working from Monday to Friday,usually you could get a reply within 8 hours (exclude weekend).

3.Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality

4.What about the lead time?
Sample needs 3~5 days, mass production time needs 5~7 days.

5.Are you manufacturer?
Yes, we are Shenzhen manufacturer, we have production experience for 16 years.

6.Do you offer guarantee for the products?
Yes, You can choose a two-year warranty, the price is slightly different.
Product Paramenters
What is COB Led Strip?
The Full Name of the COB Led Strip is: Chip on Board, Which is a Method of Directly Binding the Led Chips to the PCB Board.
The Ordinary Light Strip is Made of Chip on the frame, and Made Into SMD. Then Put the Smd on the PCB. COB led strip Saves a Lot
of Space on PCB and Cost.
Because It Saves Space, More LED Can Be Added. Generally, The 2835 Strip Light Can Hold a Maximum of 240 SMD Per Meter, and the
COB Can Hold 640 Chips or More.
And Because the Cost of Mounting the Chip on the frame is Saved, the Price of the COB Led Strip is Much Cheaper Than the Same
Number of Led Strips. COB Led Strip Advantages:
1. The Price is Cheaper and Easy to Use.
2. Electrical Stability, Circuit Design, Optical Design, and Heat Dissipation Design Are Scientific and Reasonable.

3. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
4. Continuous and uniform linear illumination, with soft and elegant light, no glare.
5. Adopt Flip-Chip technology, no dead light risk.
6. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you
7. It's your new best choice for Lighting Market.

Product Image

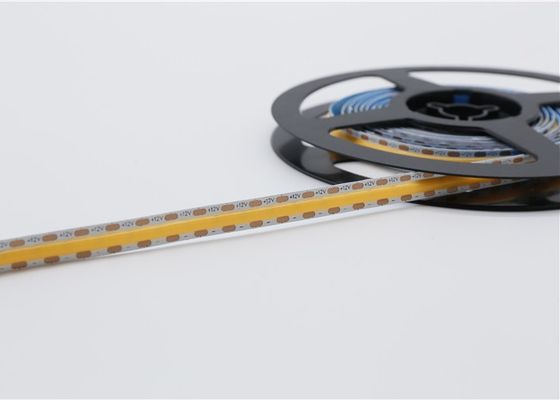

Cob Led Strip Led Tape Light CRI90 12v 24v Flexible White Dotless Luces Flip Chip 0

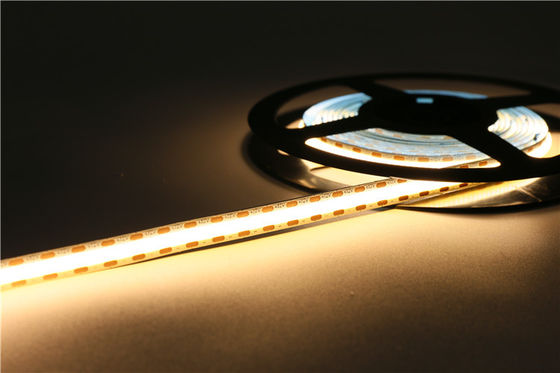

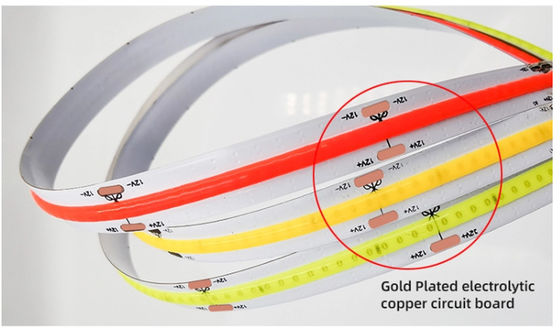

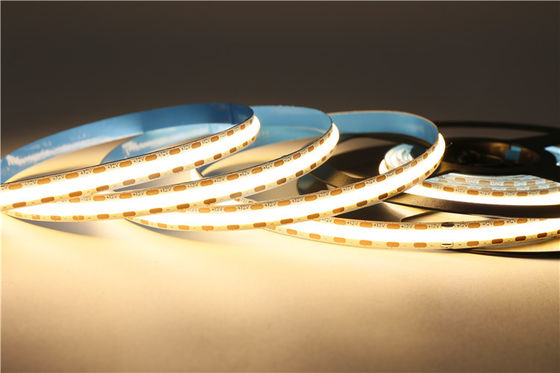

Cob Led Strip Led Tape Light CRI90 12v 24v Flexible White Dotless Luces Flip Chip 1Cob Led Strip Led Tape Light CRI90 12v 24v Flexible White Dotless Luces Flip Chip 2
