30mm DC12V RGB LED Pixel Module Full Color For Building Decoration
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Miracle Bean |
| Certification: | CE ROHS |
| Model Number: | XH-G3003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | negotiate |
| Packaging Details: | 160pcs/bags, 25bags/master carton, carton size:410*290*190cm, G.W.:31.2kg |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T In advance,Western Union,Paypal,LC |
| Supply Ability: | 10,000 Per month |
|
Detail Information |
|||
| Working Voltage: | DC12V | Color: | RGB Full Color |
|---|---|---|---|
| Size: | F30*8.2mm | IP Rating: | IP67 |
| Rate Power: | 1W | Warranty: | 3 Years |
| Highlight: | pixel led light,led pixel lamp |
||
Product Description

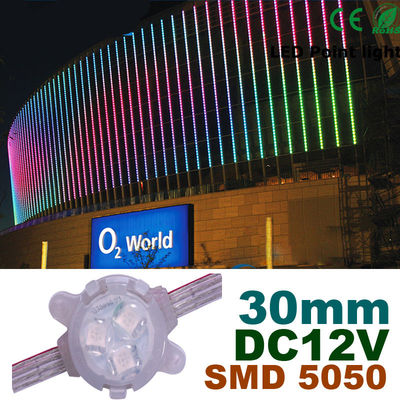

30mm DC12V RGB LED Pixel Module Full Color For Building Decoration
Features:
It has compact appearance, plugging card style design,and using drilling installation design which allow it
to be freely tailored, connected and make installation and maintenance easier. Adopting PWM controlling,
256-grade gray adjusting, the communication distance between two points could be long as 100m
Parameters:
| LED | 3PCS 5050 RGBLED |
| Working Voltage | DC12V |
| Rate Power | 1W |
| Protection Class | IP67 |
| WorkTemperature | -40℃-80℃ |
| Light intensity | 4000-4500mcd |
| Beam Angle | 120° |
| Color | RGB Full-color |
| Lifespan | 50000hrs |
| Line Sequence | Red12V+,White12-,Green DAT, Blue DCLK |
| IC Model No | SM16716,50pcs/string |
| Length of wire between two modules | 10cm |

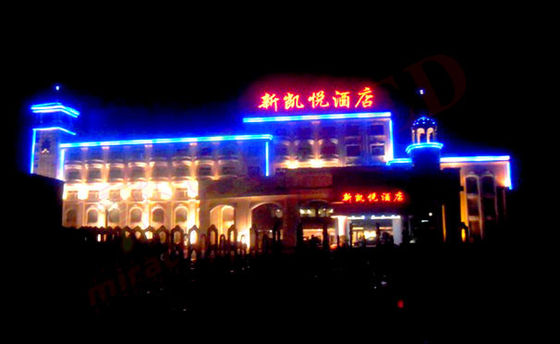

Applications
It is widely used in light-emitting word, special-shaped screen, wall lighting, background wall and other
projects.
