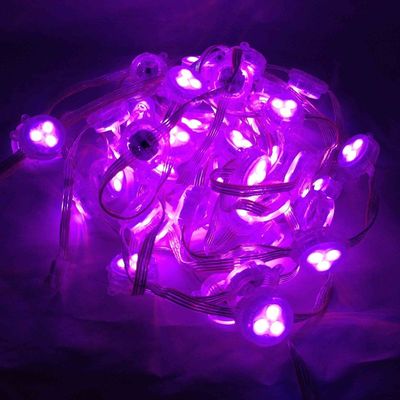

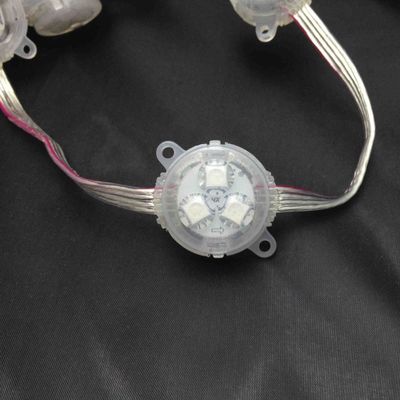

30mm DC12V RGB Full Color LED Pixel Module with DMX512 Control

China 30mm DC12V RGB Full Color LED Pixel Module with DMX512 Control supplier
30mm DC12V RGB Full Color LED Pixel Module with DMX512 Control supplier 30mm DC12V RGB Full Color LED Pixel Module with DMX512 Control supplier

Large Image :  30mm DC12V RGB Full Color LED Pixel Module with DMX512 Control

Product Details:

Place of Origin: Guangdong,China
Certification: CE ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiate
Packaging Details: 160pcs/bags, 25bags/master carton, carton size:410*290*190cm.
Delivery Time: 5-7 working days
Payment Terms: T/T In advance,Western Union,Paypal,LC
Supply Ability: 10,000 Per month
Contact Now
Detailed Product Description
Working Voltage: DC12V Color: RGB Full Color
Size: F30*8.2mm IP Rating: IP67
Rate Power: 1W Warranty: 3years

30mm DC12V RGB Full Color LED Pixel Module with DMX512 Control



Features:

 It has compact appearance, plugging card style design,and using drilling installation design which allow it



to be freely tailored, connected and make installation and maintenance easier. Adopting PWM controlling,

256-grade gray adjusting, the communication distance between two points could be long as 100m



Parameters:

LED  3PCS 5050 RGBLED
Working Voltage DC12V
Rate Power 1W
Protection Class IP67
WorkTemperature -40℃-80℃
Light intensity 4000-4500mcd
Beam Angle 120°
Color RGB Full-color
Lifespan 50000hrs
Line Sequence Red12V+,White12-,Green DAT, Blue DCLK
IC Model No  SM16716,50pcs/string
Length of wire between two modules 10cm



Applications

It is widely used in light-emitting word, special-shaped screen, wall lighting, background wall and other

projects.
