RGB LED Lighting Controller

China RGB LED Lighting Controller supplier
RGB LED Lighting Controller supplier RGB LED Lighting Controller supplier RGB LED Lighting Controller supplier RGB LED Lighting Controller supplier RGB LED Lighting Controller supplier

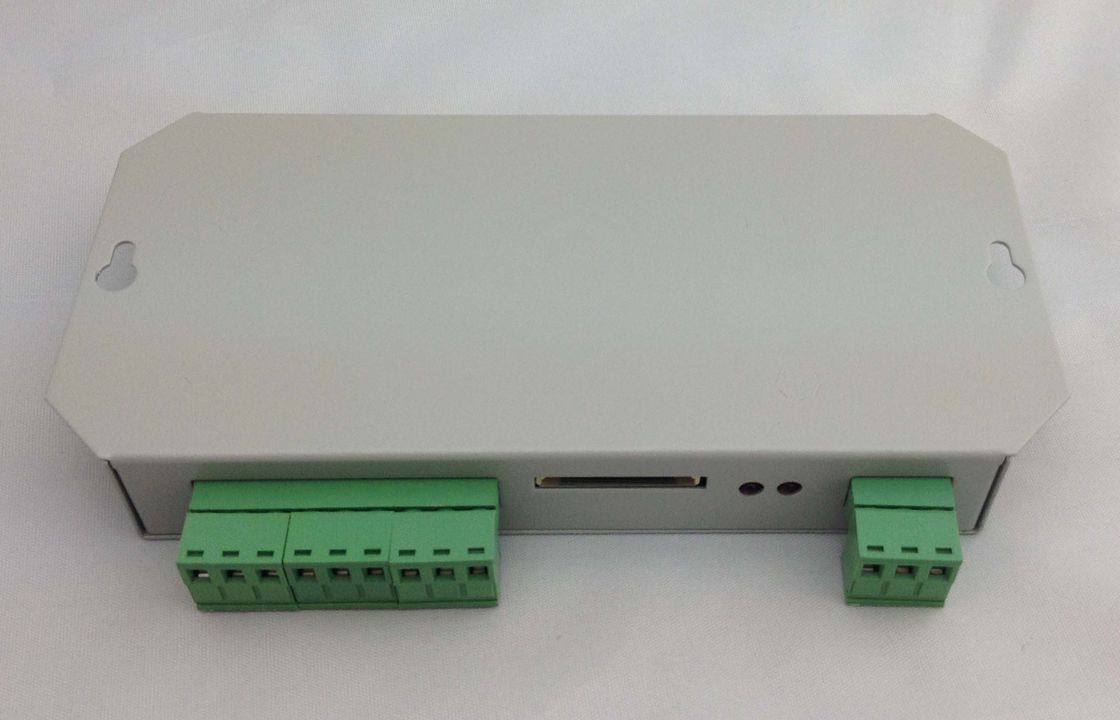

Large Image :  RGB LED Lighting Controller

Product Details:

Place of Origin: Guangdong,China
Brand Name: XINHE
Certification: CE ROHS
Model Number: T-1000S

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: negotiate
Delivery Time: 13-5 working days
Payment Terms: T/T In advance,Western Union,Paypal,LC
Supply Ability: 10,000PCS
Contact Now
Detailed Product Description

 RGB LED Lighting Controller



Quick Detail:

1, 32—256 Gray,Support software Gamma correction.

2, Support the rules and special-shaped handle.

3, Single-port output,can support 2048 lights.

4, Off-line(SD Card) control, play back content stored in the SD card.

5, T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,

after formatting the SD card as “FAT” format.

6, The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.

7, Compatible with single line or double line chips.





Definition of buttons:

Buttons Meaning
SET Save Settings ( to save current settings file and the playback speed ).
MODE Change programs
SPEED+ Speed up Press speed+ and speed- on the same time the program will play circularly.
SPEED- Speed down


DC5V +5V power input
GND Power GND input
75-24V +7.5-24V power input
POWER Power indicator
ERROR Error indicator
SD CARD SD card slot


TTL signal(245/spi signal): RS485 signal.

CLK Clock signal B Signal A / DMX+
DAT Data signal A Signal B / DMX-
GND Signal ground GND Signal ground





Support IC model

IC model Control mode for software Pixels(MAX) Note
LPD6803,D705,1101,6909, 6912 T-1000-6803 2048 pixels
LPD8806,LPD8809 T-1000-8806 2048 pixels
TM1803,TM1804,TM1809,TM1812 T-1000-TM 2048 pixels TM1804 and TM1809 are divided into high and low
TM1903,TM1904,TM1909,TM1912 T-1000-TM19 2048 pixels
UCS6909,UCS6912,UCS7009,UCS5903 T-1000-UCS-32 2048 pixels
UCS1903,UCS1909,UCS1912 T-1000-UCS-256 2048 pixels 1903 and 1909 are divided into high and low
UCS3903 T-1000-UCS-1024 2048 pixels
DMX512 T-1000-DMX 170/512 pixels Compatible with standard DMX512
WS2801,WS2803 T-1000-WS 2048 pixels
WS2811 T-1000-WS2811 2048 pixels WS2811 be divided into high and low
DS189 T-1000-DS189 2048 pixels
TLS3001,TLS3002,TLS3008 T-1000-TLS * pixels
P9813 T-1000-P9813 2048 pixels
SM16715 T-1000-SM16715 2048 pixels SM16715 be divided into high and low
SM16716 T-1000-SM16716 2048 pixels
BS0901,BS0902 T-1000-0901 2048 pixels
BS0815 T-1000-0815 2048 pixels


Specifications :


Memory card:

type: SD card(suggest using high-speed SD card)

Capacity: 128MB—2GB

Format: FAT

Store file: *.led

Physical parameters:

Working temperature : -30℃—85℃

Working voltage: DC5V / DC7.5-24V

Working power: 1W

size: L165mm×W80mm×H30mm

weight: 0.35KG

signal port: 3pin connect port





Competitive advantages:

  1. We have more than 7 years’ experience ,
  2. We have more than 20 foreign customers Who have kept purchasing from our company more than 3 years.
  3. Compared to our factories,same price,we have the better quality;same quality,we have the cheaper price.
  4. Small MOQ, Short delivery time,2 years’ warranty.
