RGB LED Strip Controller

China RGB LED Strip Controller supplier

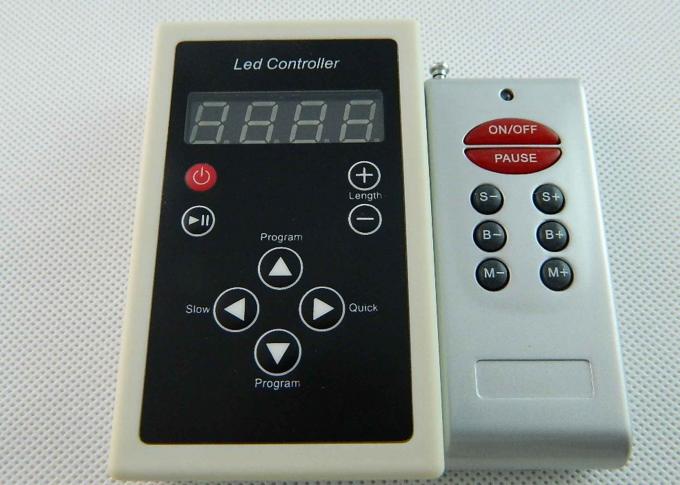

Large Image :  RGB LED Strip Controller

Product Details:

Place of Origin: Guangdong,China
Brand Name: XINHE
Certification: CE ROHS
Model Number: T-RF-M

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: negotiate
Delivery Time: 13-5 working days
Payment Terms: T/T In advance,Western Union,Paypal,LC
Supply Ability: 10,000PCS
Contact Now
Detailed Product Description

  RGB LED Strip Controller


Quick Detail:

1, 32—256 Gray,Support software Gamma correction.
2, Support the rules and special-shaped handle.
3, Single-port output,can support 2048 lights.
4, Off-line(SD Card) control, play back content stored in the SD card.
5, T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6, The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.
7, Compatible with single line or double line chips.


Description:

Definition of buttons:

ButtonsMeaning
SETSave Settings ( to save current settings file and the playback speed ).
MODEChange programs
SPEED+Speed upPress speed+ and speed- on the same time the program will play circularly.
SPEED-Speed down



DC5V+5V power input
GNDPower GND input
75-24V+7.5-24V power input
POWERPower indicator
ERRORError indicator
SD CARDSD card slot



TTL signal(245/spi signal): RS485 signal.

CLKClock signalBSignal A / DMX+
DATData signalASignal B / DMX-
GNDSignal groundGNDSignal ground




Applications:

Support IC model

IC modelControl mode for softwarePixels(MAX)Note
LPD6803,D705,1101,6909, 6912T-1000-68032048 pixels
LPD8806,LPD8809T-1000-88062048 pixels
TM1803,TM1804,TM1809,TM1812T-1000-TM2048 pixelsTM1804 and TM1809 are divided into high and low
TM1903,TM1904,TM1909,TM1912T-1000-TM192048 pixels
UCS6909,UCS6912,UCS7009,UCS5903T-1000-UCS-322048 pixels
UCS1903,UCS1909,UCS1912T-1000-UCS-2562048 pixels1903 and 1909 are divided into high and low
UCS3903T-1000-UCS-10242048 pixels
DMX512T-1000-DMX170/512 pixelsCompatible with standard DMX512
WS2801,WS2803T-1000-WS2048 pixels
WS2811T-1000-WS28112048 pixelsWS2811 be divided into high and low
DS189T-1000-DS1892048 pixels
TLS3001,TLS3002,TLS3008T-1000-TLS* pixels
P9813T-1000-P98132048 pixels
SM16715T-1000-SM167152048 pixelsSM16715 be divided into high and low
SM16716T-1000-SM167162048 pixels
BS0901,BS0902T-1000-09012048 pixels
BS0815T-1000-08152048 pixels



Specifications :

Memory card:
type: SD card(suggest using high-speed SD card)
Capacity: 128MB—2GB
Format: FAT
Store file:*.led
Physical parameters:
Working temperature : -30℃—85℃
Working voltage: DC5V / DC7.5-24V
Working power: 1W
size: L165mm×W80mm×H30mm
weight: 0.35KG
signal port:3pin connect port




Competitive advantages:

  1. We have more than 7 years’ experience ,
  2. We have more than 20 foreign customers Who have kept purchasing from our company more than 3 years.
  3. Compared to our factories,same price,we have the better quality;same quality,we have the cheaper price.
  4. Small MOQ, Short delivery time,2 years’ warranty.
