|Protection Class:||IP67||Color:||RGB Full Color|
|Rate Power:||0.3W||LED Type:||1pcs 8mm Staw Hat|
led pixel lights,
rgb pixel led

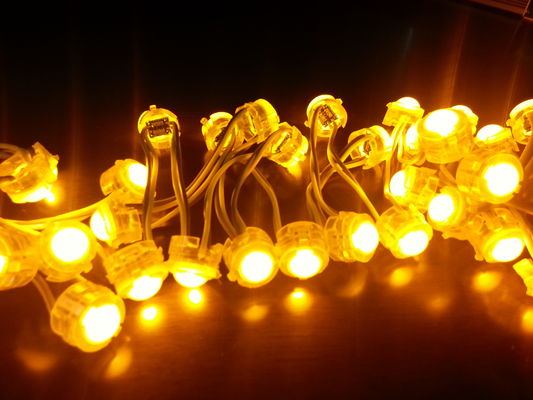

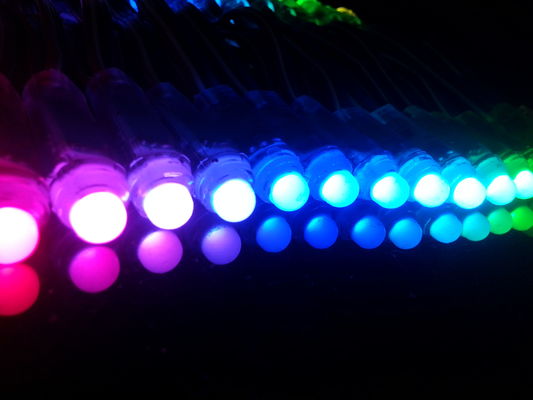

IC UCS1903 RGB Full-Color Pixel LED Lighting 12mmh Staw Hat LED
RGB LED Pixel light, LED Channel letter,programmable led sign,ourdoor using IP67
|Products Name||RGB LED Pixel/Pixel LED/LPD 1903 LED Pixel Light|
|LED Encapsulation||Straw Hat LED|
|LED Type||Low power LED|
|Light Decay||Less Than 1% After 1,000H|
50pcs of each string, 3A/string. User can use paralleling for multiple strings, each string running a loop, to avoid the nonuniform color which caused by the voltage drop, the thickness of power cord should not less than 2.5mm2.
Keep it in a well-ventilated environment, which good for heat dissipation.
The Green wire is data, Red wire connect with positive pole on the power supply, yellow wire connect with negative pole and controller’s GND port, green wire is connect to controller DAT port. Do not reversal!
The led lamp diameter is 12mm, punching 12mm hole.
According to the signboard hanging height, the distance between lamps should be within 5-8cm.
This lamp use special optical lens, high light transmittance. protect chip from moist, Unti-UV, thermostability, cold-resistant, anti-corrosion, and anti,acid-base, etc, more longer life time.
All products will be tested and keep lighting up for 24 hours to test its quality reliability twice, and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
Trade term: EXW / FOB Shenzhen/CIF
Delivery time: 3-5 working days for sample order, 7-10 working days for mass order after the payment.
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, SMART will provide paid maintance within warranty period.
