Product Details
Place of Origin: Guangdong,China
Brand Name: Miracle Bean
Certification: CE ROHS
Model Number: XH-HD1201S
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: negotiate
Packaging Details: 50pcs/string,800pcs/bag,3200bags/box
Delivery Time: 5-7 working days
Payment Terms: T/T In advance,Western Union,Paypal,LC
Supply Ability: 10,000 Per month
1Input Voltage: |
DC5V |
2Power: |
0.3w |
3Lighing Source: |
Epistar |
4Beam Angle: |
120 |
5Color: |
Full Color |
6Warranty: |
2 Years |
Input Voltage: |
DC5V |
Power: |
0.3w |
Lighing Source: |
Epistar |
Beam Angle: |
120 |
Color: |
Full Color |
Warranty: |
2 Years |

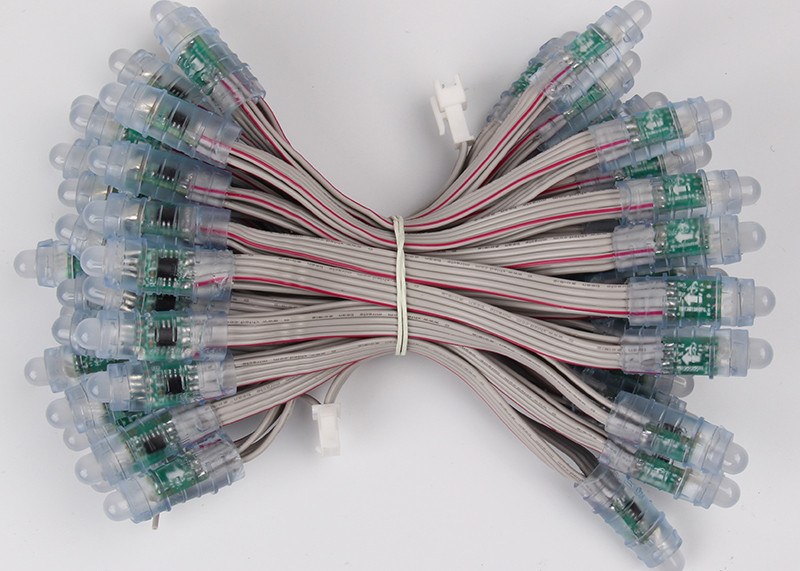

Adversing Signboard Waterproof Led pixel light 0.3w For Backgroud Wall
Parameters
| Parameter | Symbol | Condition | Range | Unit | ||||||
| Voltage of power supply | VDD | Direct current | 5 | V | ||||||
| Working temperature | Top | DC5V,50%RH | -20~+40 | ℃ | ||||||
| Working humidity | B | DC5V,25℃ | 98 | %RH | ||||||
| Viewing Angle | 2θ1/2 | 120 | ° | |||||||
| Basic color | Color | 3LEDsingle color | red,green,blue,yellow,white | |||||||
| Light attenuation rate(1000H) | —— | DC12V,25℃ | 5~8 | % | ||||||
| Internal Protection | IP | Our-door use | IP67 | |||||||
| Drilling size | D | —— | —— | MM | ||||||
| Length of wire | Ls | general | 110 | MM | ||||||
| Material of shell | plastic | |||||||||
| Color of shell | Milky white | |||||||||
| Gasket cement | epoxy resin/silicone | |||||||||
| Accessory | 5v DC power supply(Please choose a suitable power supply according to the total power) | |||||||||
| Serial product | ||||||||||
| Model No | Color | appearance | Luminance(mcd)/1pcs | wavelength | power(W/1pcs) | |||||
| Max | Min | |||||||||
| XH-126MC3S3AR-B | red | Piranha | 3600 | 3000 | 620~630nm | 1 | ||||
| XH-126MC3S3AY-B | yellow | 3600 | 3000 | 585~595nm | 1 | |||||
| XH-126MC3S3AB-B | blue | 4800 | 4200 | 455~470nm | 1 | |||||
| XH-126MC3S3AG-B | green | 12000 | 9000 | 510~525nm | 1 | |||||
| XH-126MC3S3AW-B | white | 8400 | 6000 | 6500~7000K | 1 | |||||
Applications
1. LED light-emitting letters,special shape screen
2. wall lighting,backgroud wall
3. adversing signboard,building profile lighting
4. Factory,office
5. Supper market
