WS2811 Square LED Pixel Light 5V 12V 6898 Chip Full Silicon Glue Waterproof Protection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 0.3W | Input Voltage | 5v |
|---|---|---|---|
| Color | RGB | Material | PC |
| SMD | 5050 | IP Grade | IP67 |
| Chip | 6898 | Working Time | 30000h |
| Highlight | Silicon Glue Square LED Pixel,6898 Chip Square LED Pixel,Waterproof ws2811 square pixels |
||
Product Description
ws2811 square led pixel light 5V 12V led pixel string led module
Product Description
Features:
1.Individually control: 1PCS LED pixel & 1IC
2.IC chip: can be ws2801, ws2811, ucs1903, sm16716, lpd6803 IC .
3.Waterproof IP65, with full silicon glue waterproof protection.
4.Installation: Easy to install, you'd better drill the hole with 12mm.
5.With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6.Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V, or you can destroy the entire pixel.
7.Connetors: 3PIN or 4PIN JST female and male connectors. Each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
3PIN: DAT, DC5V+, GND-
4PIN: DAT, CLK, DC5V+, GND
8.Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
9.Color and effect: addressable lights you can set to any color, or animate, like running water,chasing and scanning etc. depending on the different installation methods may compose different dynamic effect of different color's character and design
Specifications:
| Item Name | LED pixel light |
| Model No | MD1201S05 |
| Color | full color |
| IC brand | WS2811 |
| Working Voltage | 5V / 12V DC |
| Power | 0.3W or 0.6W/pcs |
| Size | 12mm |
| IP rating | IP67 |
| Application | LED sign |
| Beam Angle | 160° |
| Packing | 50pcs/string, 2000pcs/carton |

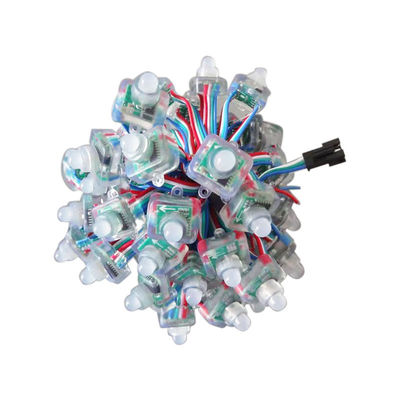

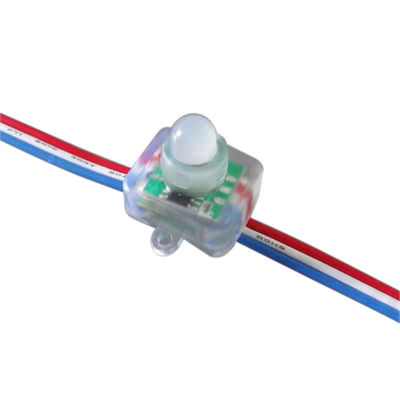

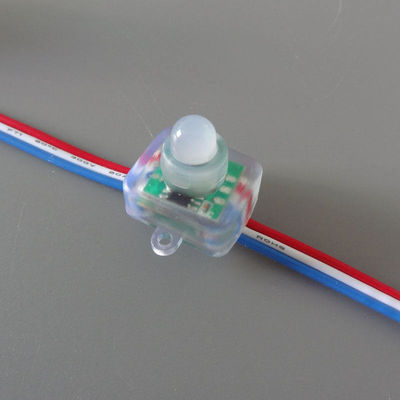

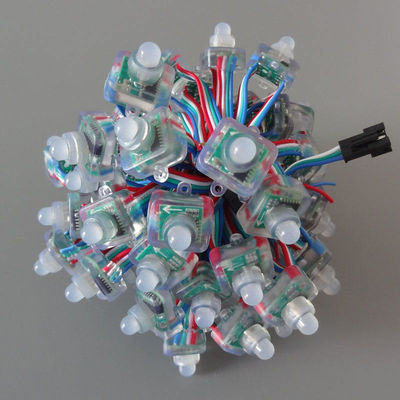

Product Pictures
Packaging & Shipping
>Payment Term: EXW, FOB, CIF
>MOQ: 1pcs
>Sample Availability: Yes
>Supply Capability: 10000 pcs/month
> Packing:
* Inner Box: white box / brown box / color box
* Outer Box: 5 layers strong box
>Payment: T/T, Western Union, Credit Card
>Normal Lead Time: 5 days for sample order; 12 days for bulk order
>Payment Terms: 30% before production, 70% before delivery
>Discount: For big quantity
>Port: Shenzhen
>Shipment: By Sea / Air / Express
FAQ
1.How to buy it ?
You must send a email to us, and mention what you're looking for, the sales will make a Proforma Invoice for all the products you are willing to buy from us!
2.How Long will I wait to get a reply after inquiry?
Our sales team working from Monday to Friday,usually you could get a reply within 8 hours (exclude weekend).
3.Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality
4.What about the lead time?
Sample needs 3~5 days, mass production time needs 5~7 days.
5.Are you manufacturer?
Yes, we are Shenzhen manufacturer, we have production experience for many years.
6.Do you offer guarantee for the products?
Yes, we offer 2 years warranty for our products.
