Product Details
Place of Origin: Guangdong, China
Brand Name: Miracle Bean
Certification: CE ROHS
Model Number: XH-JHP-P4
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: A Big Box
Delivery Time: Within 7-15 working days
Payment Terms: T/T, In advance, Western Union, Paypal, L/C
Supply Ability: 2000 square meters per month
1Product Model: |
XH-JHP-P4 |
2Size: |
240*960mm |
3LED Device: |
1314RGB |
4Operating Voltage: |
DC5V |
5Pixel Density: |
62500Dot/㎡ |
6Lifespan: |
50000h |
Product Model: |
XH-JHP-P4 |
Size: |
240*960mm |
LED Device: |
1314RGB |
Operating Voltage: |
DC5V |
Pixel Density: |
62500Dot/㎡ |
Lifespan: |
50000h |

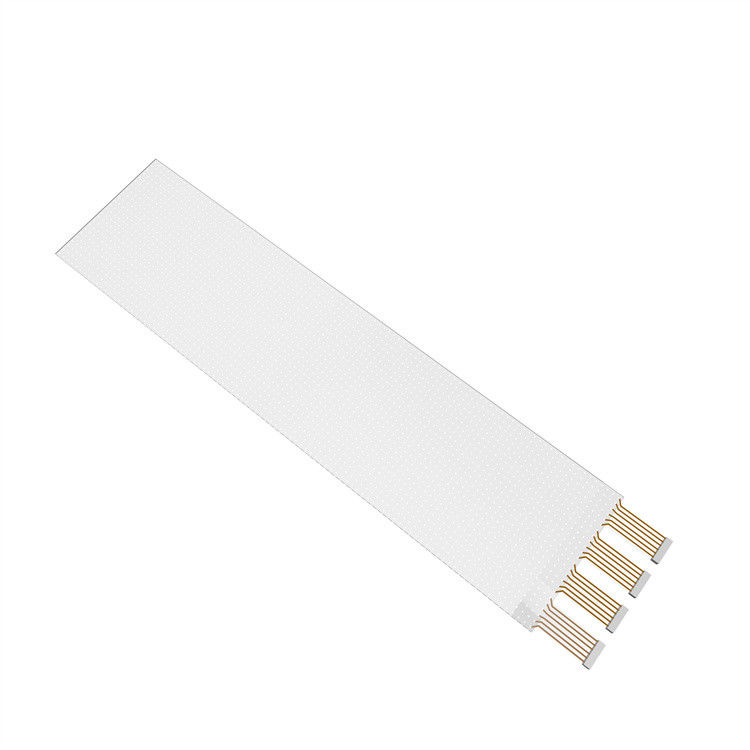

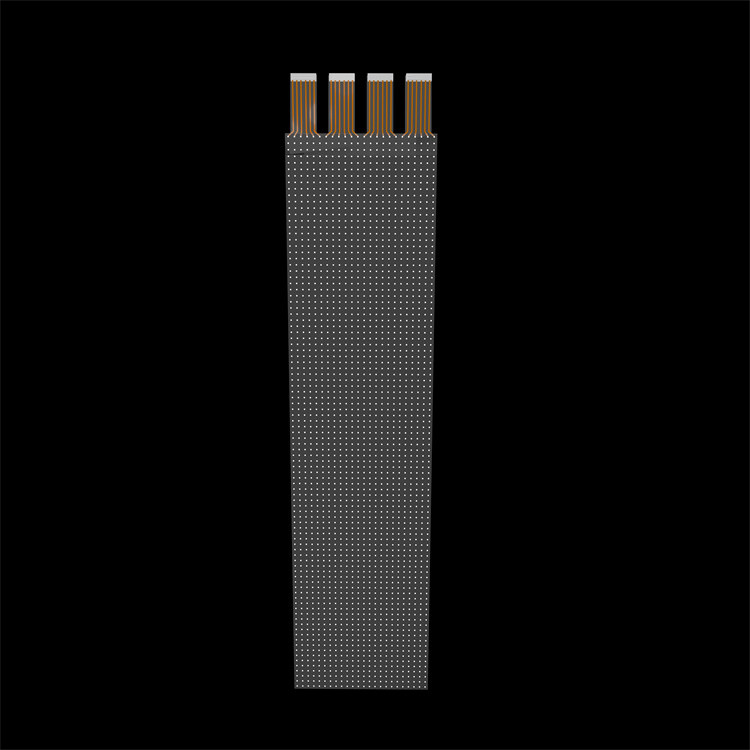

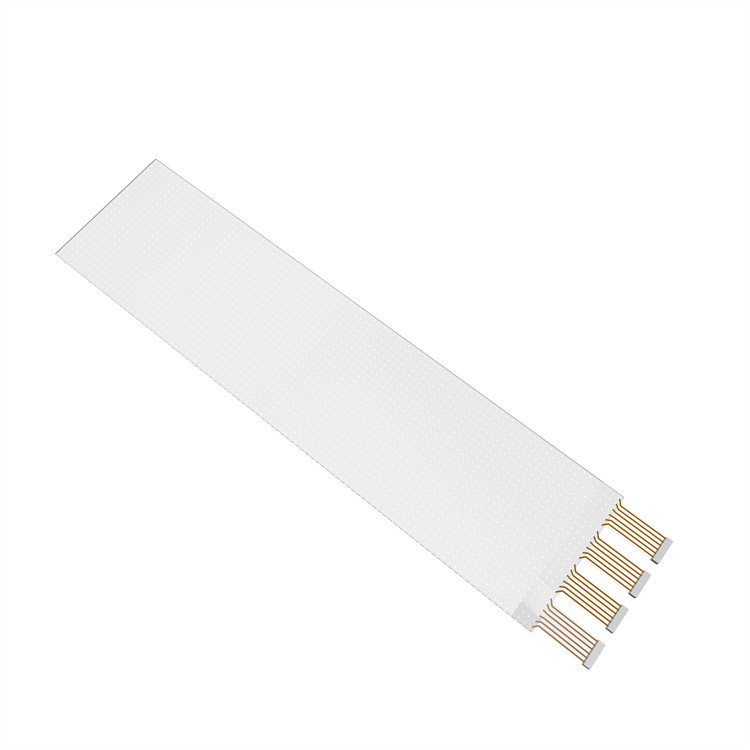

LED Display Screen P4 Indoor Glass Window LED Transparent Film Screen
Specification
| Product Model | XH-JHP-P4 |
| Brand Name | Miracle Bean |
| Pixel Density | 62500Dot/㎡ |
| LED Devices | 1314RGB |
| Module Size | 240*960mm |
| Mod Pixel | 60*240 |
| Module Weight | 4Kg/㎡ |
| White Balance Brightness | 3000Cd/㎡ |
| Transparency | 80% |
| Optimal Viewing Distance | 4-50m |
| Viewing Angle | 160° |
| Operating Voltage | DC5V |
| Input Voltage | AC200-240V |
| Average Power Consumption | 200W/㎡ |
| Maximum Power Consumption | 600W/㎡ |
| Installation Method | Hoisting/Mounting |
| Brightness Control Level | 256 |
| Grayscale Level | 16bit |
| Operating Temperature | -20~+65°C |
| Operating Humidity | 10-85%RH |
| Lifespan | 50000H |
| Control System | Mosier/Nova/Caretel |
Product Features

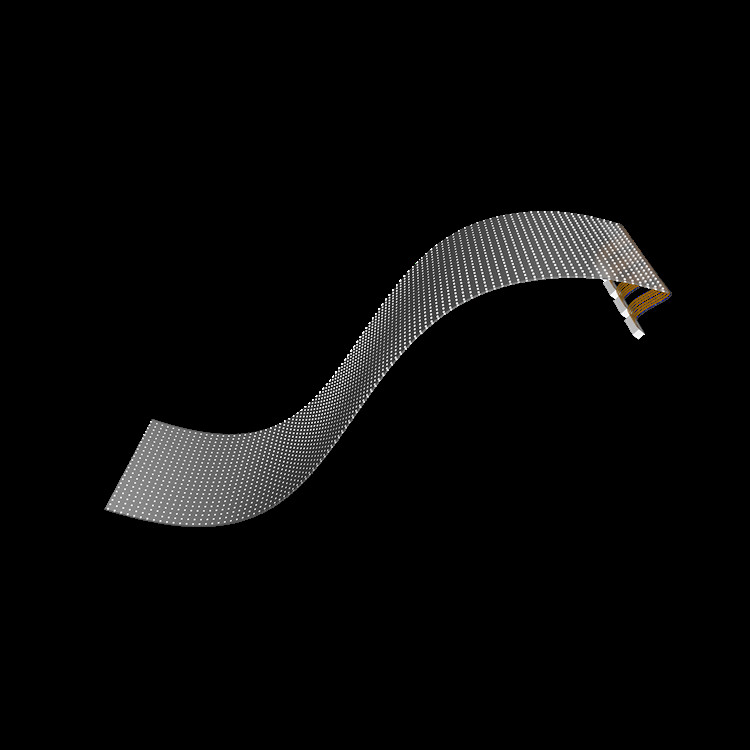

1. Using flexible film as the functional carrier board of the LED display, the thickness of the module can be less than 2MM, and there is no need to install a frame. The module is directly attached to the glass surface to complete the installation. It is suitable for indoor post-installation applications.
2. With excellent transparency, it is currently the thinnest, lightest and most concealable LED display.
3. Remote control and cluster control can realize WIFI remote control; multi-screen interactive focus group control, split-screen control.
4. Interactive sensing, unlimited splicing to expand a variety of sensing devices, temperature control, light control, human screen Interactive; can be cropped and cut.
5. Pictures, text display, animation, and video playback are compatible with a variety of LED display functions.
Advantages
Our Services
1. Your inquiry related to our products or prices will be replied in 24 hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3. OEM&ODM, any your customized lightings we can help you to design and put into product;
4. Distributoership are offered for your unique design and some our current models;
5. Protection of your sales area, ideas of design and all your private informaton
6. Provide lifelong warranty for long-term cooperation.
7. After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
Product Show
FAQ
1. Q: How long is the warranty period?
A: 2 Years
2. Q: Do you support OEM & ODM?
A: Yes, more than 19 years' exprience
3. Q: Can you print our company label and stick it to the product for me?
A: Yes
4. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment;
For big orders, usually the delivery time is within 7 working days;
OEM and ODM orders, within 15 working days
