High Brightness Single Color LED Light Module IP67 SMD2835 1W DC12V
Product Details:
Place of Origin: | Guangdong,China |
Brand Name: | Miracle Bean |
Certification: | CE ROHS |
Model Number: | XH-MFS3LED-12VDC-IP67 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100 |
---|---|
Price: | negotiate |
Packaging Details: | Paper Box packing |
Delivery Time: | Within 5-7 working days |
Payment Terms: | T/T, In advance, Western Union, Paypal, L/C |
Supply Ability: | 50000pcs per month |
Detail Information |
|||
Volt: | DC12V | Power: | 1W |
---|---|---|---|
Color: | Single Color | Led Type: | SMD2835 |
Viewing Angle: | 160° | Protection: | IP67 |
Luminous Flux: | 120lm | Lifespan: | 30000h |
Highlight: | industrial outdoor led flood lights,outside flood lights |
Product Description
High Brightness Single Color LED Light Module IP67 SMD2835 1W DC12V
♦♦ Specification
Item | Led Light Module |
Model | XH-MFS3LED-12VDC-IP67 |
Storage Temperature | -40℃-60℃ |
Operating Temperature | -40℃-60℃ |
Color Temperature | 6000-6500k |
Viewing Angle | 160° |
Power Dissipation | 1% |
Power | 1W |
Optical Attenuation | 1% |
Luminous Flux | 120lm |
Working Voltage | DC12V |
Chip Source | OSRAM |
Led Source | SMD2835 |
Body Material | Alluminum Alloy |
Lifespan | 30000hours |
Certification | CE,ROHS |
Color | Single Color |
OEM/ODM | Welcome |
Protection | IP67 |
Qty / carton | 50pcs |
♦♦ Product Features
1. LED using OSRAM lamp bead 0.5W/2835, low light decay, high brightness.
2. The use of aluminum oxide shell, plus thermal aluminum substrate, better heat dissipation effect.
3. The use of conjoined batwing optical distribution lens, no macular, luminous Angle 160°.
4. Wire with tinned double parallel wire, waterproof grade IP66.
5. Product cascade quantity 20pcs.
♦♦ Installation Instructions
1. The main line of the power supply using 2x2.5mm² above the cable, end to end to connect the power supply, if the module power line needs to be extended must choose the cable above 0.5 mm², so as to avoid overload leading to excessive heat of the power line, resulting in adverse consequences, the length of the power line between the switching power supply and the module is recommended not to exceed 2 meters, The number of modules carried should not exceed 300PCS, otherwise the line loss will increase, the pressure drop will increase, and the light and dark will be uneven. If the length of the power cord is more than 2M, a thicker power cord should be replaced;
2. The number of module cascades cannot exceed 40pcs, and both ends need to be connected to power;
3. When installing the module, tear off the release paper with adhesive at the bottom and attach it to the light box or advertising sign for preliminary fixation, and then fix it by using glass glue or hot melt glue on both sides of the module;
4. The standard cascade of modules is 20PCS/ string, users can also cut a single according to actual needs.
♦♦ Advantages
- OEM & ODM
- Pass CE and RoHS Certification
- More than 18 years' exprience, speciallized in waterproof led drivers,
- More than 50 foreign customers which have cooperated with our company for more than 3 years.
- Small MOQ, helping you to cooperate with our company step by step.
- Warranty: 2 years warranty, as soon as we confirm the defective products,we will give new ones to customers in the following order.
- Fast delivery time: We will keep stock for some quantity of products; For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days; OEM and ODM orders, within 15 working days.
- Solving the problems for customers directly.
♦♦ Trade Details
MOQ | 100pcs Led Light Mdule |
Payment | L/C, D/A/, D/P, T/T, Western Union, Monerygram, Paypal |
Port | Shenzhen |
Delivery Time |
3-5 days for Led Light Module we will keep stock for some quantity of products; For sample orders: we can send out the products as soon as we get the payment; For big orders: usually the delivery time is within 7 working days; OEM and ODM orders: within 15 working days. |
Packing | Paper Box Packing |
Shipping | By air, by sea, express are supported. |
♦♦ Our Services
1. Replied in 24hrs
2. Answer all your enquires in fluent English
3. OEM & ODM are welcome
4. Distributoership are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private informaton
6. Provide lifelong warranty
7. After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
♦♦ Shenzhen Xinhe Lighting Optoelectronics Co., Ltd.
- Specialized in semiconductor illumination and lighting products, and is an integral companyintegrating designing, developing, manufacturing, and sale.
- We focus on the appliance products in advertising and lighting area, and establish the long term business relationship with large advertisement material distributors.
- With topping technology talented persons, advanced management, efficient staff team, our company tries our best to create well-known brand in semiconductor illumination field.
- Our company bases on LED encapsulation, making the best lighting deploying projects in allusion to different LED appliance field.
- Our company captured the chance of revolution of world illumination industry, and formed application department.
- Our extended series products are as: the LED modules for advertising lighting, specialized LED switch power supply, LED RGB controllers, LED open signs, super LED straight lighting words and other related products.

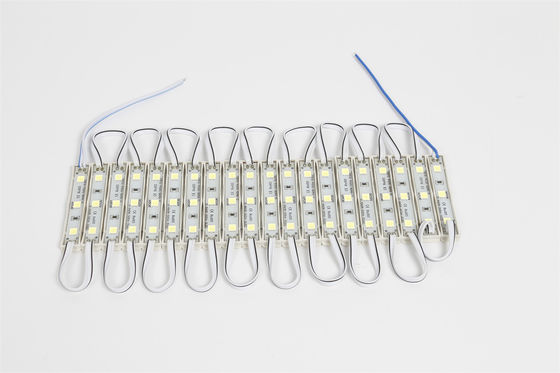

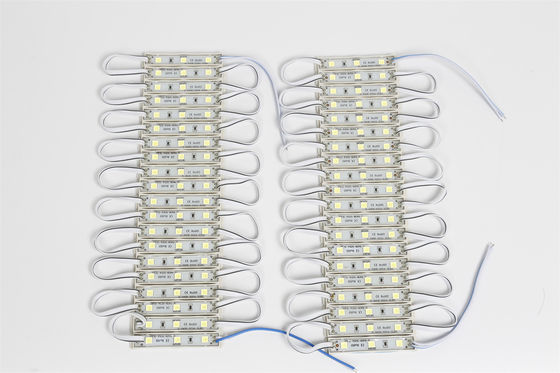

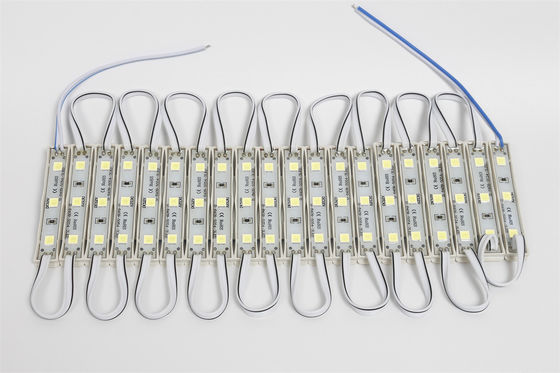

♦♦ Product Show
