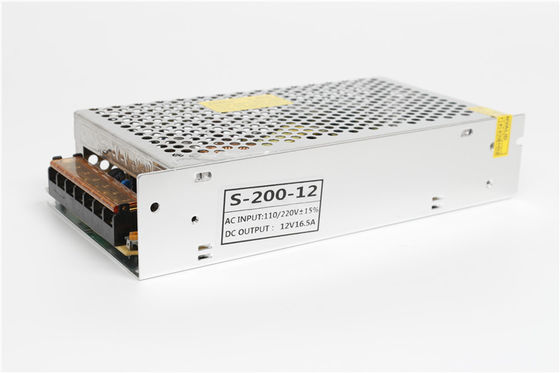

Led Power Supply Constant voltage Single Output 200W 5V 12V 24V LED Display Power Supply
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Micacle Bean |
| Certification: | CE ROHS |
| Model Number: | XH-MW-12200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | negotiate |
| Packaging Details: | 44*33*45CM |
| Delivery Time: | Within 7-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 5000PCS per month |
|
Detail Information |
|||
| Usage: | Led Disply，led Light，led Strip | Case Material:: | Metal |
|---|---|---|---|
| Output Power: | 200W | Place Of Origin: | Guangdong, China |
| Output Type: | Single | Input Voltage: | 90-130V/170-250A |
| Working Temperature: | -45 ~ +70℃ | Warranty: | 2 Years |
| Efficiency: | 84% /86% | Output Voltage: | 5V 12v 24v 36v 48v |
| Connection: | Wire | Certificate: | CE ROHS |
| High Light: | 200W Constant Current Led Power Supply,200mV Constant Current Led Power Supply,16.66A LED Display Power Supply |
||
Product Description
Led Power Supply Constant voltage Single Output 200W 5V 12V 24V LED Display Power Supply
| Model | XH-MW-12200 | XH-MW-24200 |
| DC output voltage | 12V | 24V |
| Rated output current | 16.66A | 8.32A |
| Output current range | 0~16.66A | 0~8.32A |
| Ripple and noise | 200mV | 250mV |
| DC output power | 200W | 200W |
| Efficiency | 84% | 86% |
| Input voltage | AC 90V~130V/170V~250V | |
| Working temperature and humidity | -30~+50 centigrades 20-99% RH non-condensing(waterproof) | |
| Store temperature and humidity | -40~+80centigrades 10-99% RH | |
| Input frequency | 50-60Hz | |

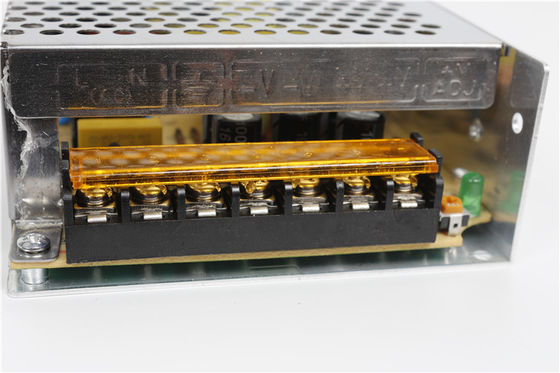

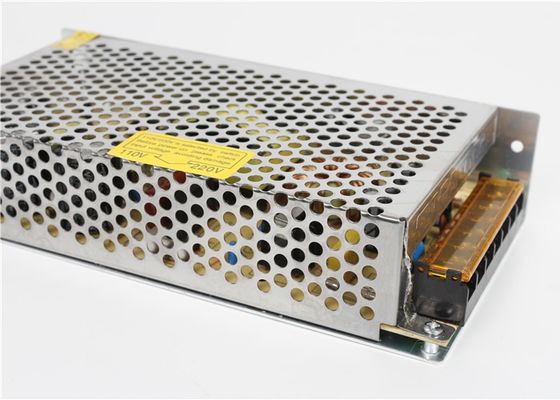

Product Show
Related products
| Features: 110V/220V AC to DC Power Series 3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V | |
| Model Series Link (View more) | |
| 3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A | |
| 5V Series: 5V2A, 5V3.8A, 5V5.5A,5V10A, 5V20A, 5V30A,5V40A, 5V60A | |
| 6V Series: 6V10A, 6V20A, 6V30A, 6V40A, 6V50A | |
| 9V ;Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A | |
| 12V Series:12V1A, 12V2A, 12V3.2A, 12V5A, 12V8.5A,12V10A,12V12.5A, 12V15A, 12V16.5A,12V20A, 12V30A, 12V40A,12V50A. | |
| 13.8V Series: 13.8V30A | |
| 15V Series: 15V2A,15V5A, 15V10A,15V20A | |
| 18V Series: 18V2A, 18V3A, 18V5A, 18V7.5A,18V10A,18V20A | |
| 24V Series:24V1A, 24V2A, 24V3A, 24V5A, 24V7.5A,24V10A24V15A, 24V20A, 24V25A | |
| 28V Series:28V1A, 28V10A | |
| 36V Series: 36V2A, 36V5A, 36V10A | |
| 48V Series: 48V2A, 48V3A, 48V5A, 48V7.5A,48V10A,48V15A |
Packaging & Shipping
30pcs/carton
1,Q: What is your MOQ of switch power?
A: Our MOQ is 1 piece
2,Q:How many year warranty of your Led driver?
A: Two years
3,Q: Do you offer sample of power?
A: Yes
4,Q: Do you have switch power factory?
A: Yes, we are OEM & ODM manufacturer in Donguan.
5,Q: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
6,Q: Do you have any certification?
A: Yes, we have CE, RoHS right now. If you need other certification with large order, We can apply for it.
