Shenzhen Xinhe Lighting Optoelectronics Co., Ltd.
Home > Products > LED Point Light > 20mm Dmx Programmable Led Pixel 12V SMD5050 For Amusement

20mm Dmx Programmable Led Pixel 12V SMD5050 For Amusement

Product Details

Place of Origin: Guangdong,China

Brand Name: Miracle Bean

Model Number: XH-G2001P12

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: negotiate

Packaging Details: According to the latest, 4 small paper boxes inside one big paper box

Delivery Time: 3-7working days

Payment Terms: Western Union, L/C, D/A, D/P, T/T, MoneyGram,Paypal

Supply Ability: 200000 pcs per month

Get Best Price

Dmx Programmable Led Pixel


20mm Programmable Led Pixel


SMD5050 Outdoor LED Pixel Light

1LED Light Source:
2Input Voltage(V)::
3IP Rating:
RGB Addressable
Outdoor Building Or Market, Decoration
8LED Chip:
Epistar SMD5050
9Working Lifetime:
10Working Temperature:
-40 - 60
LED Light Source:
Input Voltage(V)::
IP Rating:
RGB Addressable
Outdoor Building Or Market, Decoration
LED Chip:
Epistar SMD5050
Working Lifetime:
Working Temperature:
-40 - 60
20mm Dmx Programmable Led Pixel 12V SMD5050 For Amusement

20mm Dmx Led Pixel Programmable 12V Amusement Led Point Light LED Outdoor Pixel Light

Amusement Ride / Fairground / Park Lighting Series

Product Features;

1)Adpots high quality SMD 5050 RGB LED as lighting source.

2)3D effect DMX control

3)Each module as one pixel, takes 3 dmx channels,white strobe color,can be controlled individually,

4)It is easy to install, open hole.

5)Powerful waterproof ,IP67 rated, Epoxy resin filled

6)Strong cable, with good cold/heat resistance ability

7)Suppoerts DMX madrix controller,or SPI pixel controll, on-line controller...and more...

Technical Features;

Part No. XH-G2001P12
Color RGB
LED Qty 1pcs 5050 SMD
Input Volt DC12V
Max Power 0.3w
Driver method Constant voltage
Dimension 20mm diameter(open hole)
Viewing angle 160 Degrees
Protection Level IP67
Standard connection waterproof male input and female output connector(can customize)
Standard wire length 100mm ( customizable )
Housing Transaprent / Milky cover (customozable)
Lifespan 30,000 hours
Warranty 2 years
Operation temperature -40 ~ 60




Q1. Can I have a sample order for led light?


A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?


A: Sample needs 3-5 days, mass production time needs 1-2 weeks for large order quantity .


Q3. Do you have any MOQ limit for led light order?


A: Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?


A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for led light?


A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


Q6. Is it OK to print my logo on led light product?


A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7. Do you offer guarantee for the products?


A: Yes, we offer 2 years warranty to our products.


Q8. How to deal with the faulty?


A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.0002%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

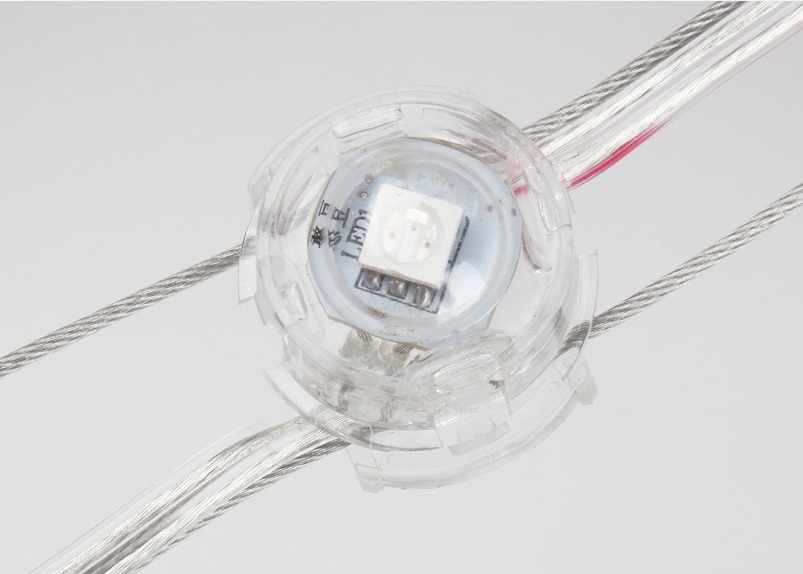

Product Image




20mm Dmx Programmable Led Pixel 12V SMD5050 For Amusement 0
