High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof for Signage

  • High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof for Signage
  • High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof for Signage
  • High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof for Signage
  • High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof for Signage
Model Number XH-MZ7803P12
Minimum Order Quantity One square meter
Price negotiate
Delivery Time 7-15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 78mm Weight 16g
LED Quantity 1 LED Type RGB
Wavelength 650nm Lifespan 50000h
Luminous Flux 100LM Voltage 12V
Power 1W Viewing Angle(°) 160
Type LED Modules
Highlight

Waterproof LED Injection Module

,

Addressable RGBW LED Injection Module

,

DC12V LED Injection Module
Leave a Message
Product Description

High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof

for Signage

LED module  Description:

The high-intensity, powerful backlight LED comes with a sturdy, sealed white plastic enclosure, designed to deliver exceptional heat management and water resistance—fully compliant with the IP65 rating.
It stands out for its low energy usage, eco-friendly efficiency, strong durability, and the long operational life characteristic of LED technology.
Perfect for fitting into channel lettering or serving as backlighting, these bright LED modules offer flexible shaping around most objects, a capability that linear lighting often lacks. Brightness can be adjusted by varying the distance between modules—placing them nearer or farther apart—while maintaining a uniform light spread.
They cast light directly onto the surface of channel letters, making them suitable for both indoor and outdoor settings.

A typical LED module usually includes the following components:

• Several LED chips
• A driver circuit that controls current and voltage
• A heat sink for handling heat emission

LED module Applications:

LED modules are versatile lighting components suitable for a wide range of application scenarios, including:

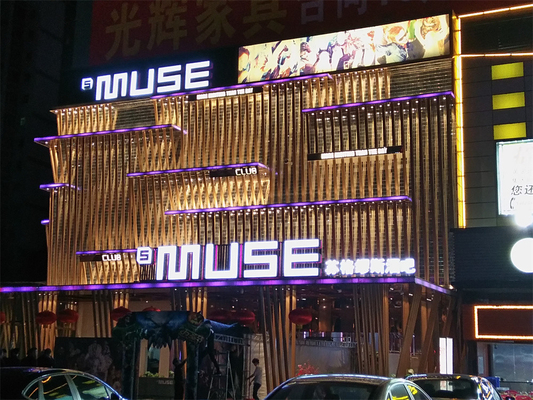

Channel lettering & signage:

Commonly used to illuminate acrylic or metal channel letters for storefronts, brand logos, and commercial signs, ensuring clear visibility

day and night, both indoors and outdoors.

Backlighting applications:

Ideal for backlighting displays, billboards, posters, or light boxes, providing even illumination to enhance visual appeal.

Architectural accent lighting:

Used to highlight building facades, columns, or decorative structures, adding depth and ambiance to  architectural designs.

Retail & commercial spaces:

Applied in shop windows, shelf lighting, or product displays to draw attention to merchandise with bright, focused light.


LED module Features:

  • Product Name: RGB LED module
  • Luminous Flux: 80LM
  • Beam Angle: 120°
  • Weight: 8g
  • LED Type: RGB
  • Lifespan (hours): 30000
  • LED quantity: 3 PCS
  • Warranty: 2 Years

LED module Conclusion:

LED modules stand out as highly versatile lighting solutions, characterized by their diverse range of shapes and sizes—from compact, space-saving designs to larger, more robust configurations. This inherent adaptability enables them to cater to a wide spectrum of practical applications across both residential and commercial settings.

In terms of form, these modules are available in three primary categories to suit different needs: small-scale options, ideal for intricate projects like accent lighting in display cases or decorative elements; standard-sized modules, which serve as reliable workhorses for general illumination in spaces such as offices, kitchens, or retail shelves; and large-format variants, designed to handle high-brightness requirements in areas like warehouses, outdoor billboards, or industrial facilities.

Such a broad array of choices empowers users to make tailored selections based on their specific needs—whether prioritizing energy efficiency, brightness, durability, or aesthetic appeal—and the unique characteristics of their intended locations. This flexibility solidifies LED modules as a go-to lighting solution for diverse scenarios.

LED Module Technical Parameters:

Product Name RGB LED module
LED Type RGB
LED quantity 3 PCS
Size 65mm
Wavelength 650nm
Luminous Flux(lm) 100lm
Viewing Angle(°) 160°
Beam Angle 160°
Current 12A
Power 1W
Weight 8g
Lifespan 50000h
Working Temperature

-20℃~60℃

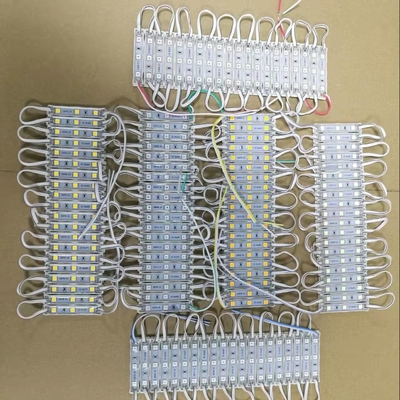

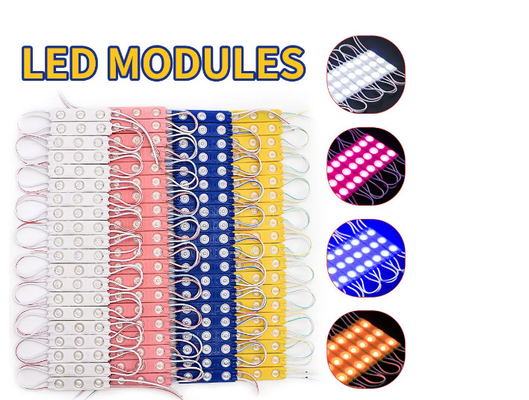

LED MODULE SHOWING

 High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof for Signage 0High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof for Signage 1

High Brightness 2835 Lens LED Injection Module Addressable RGBW DC12V IP65 Waterproof for Signage 2
