Waterproof IP67 Constant Voltage LED Driver Waterproof 24V 36V 48V 60V 500W LED Switching Power Supply
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ip Class | IP67/IP65 | Items Name | Led Power Supply |
|---|---|---|---|
| Shell Material | Aluminium Alloy | Operating Temperature | -20°C To 60°C |
| Product Size | 205*120*56mm | Certifications | CE/FCC/RoHS |
| Output Power | 500W | Color | Silver |
| Protection | Short Circuit/Over Temperature/Over Load | Efficiency | 93% |
| Highlight | Waterproof LED driver 500W,IP67 LED power supply 24V,Waterproof switching power supply 60V |
||
Product Description

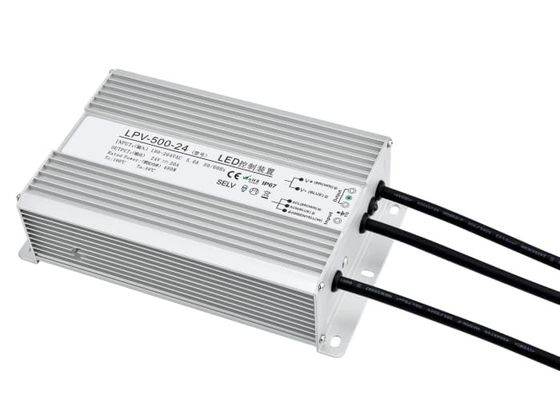

Waterproof IP67 Constant Voltage LED Driver Waterproof 24V 36V 48V 60V 500W LED Switching Power Supply
Product Description
| Modle | XH-LPV-500W |
| Output current range | 24V/36V/48V/60V |
| DC output power | 500W |
| AC Input Current |
5.0A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) |
| Dimesion |
205*120*56mm(L*W*H) |
| Efficiency |
92% |
| Weight |
2.05kg |
Description
The XH-LPV-500W Series is a waterproof AC-to-DC LED driver power supply designed with constant voltage and constant power output. It operates on a wide AC input voltage range of 180~264VAC and offers a full range of output options including 24V, 36V, 48V, and 60V.
With a conversion efficiency of up to 93%, it features a fan-less design that operates via natural air convection cooling within a case temperature range of -20°C to +60°C. The metal housing and high IP65/IP67 protection rating make the XH-LPV-500W Series suitable for both indoor and outdoor applications. It is equipped with a long-life aluminum electrolytic capacitor rated at 105°C.
Key Advantages
- Output Mode: Features flexible switching between constant voltage and constant power, guaranteeing stable power supply for loads such as LED lamps and displays.
- Input Voltage: Boasts a wide input range of 180~264VAC and 240~373VDC. It adapts to grid fluctuations across different regions, eliminating the need for additional voltage regulators.
- Cooling System: Adopts natural air cooling (fan-free design), which lowers noise levels and reduces the risk of malfunctions caused by cooling components.
- Housing Structure: Comes with a fully enclosed aluminum alloy casing, providing excellent heat dissipation, resistance to corrosion and impact, as well as effective dust protection.
- Protection: Full potting, IP65/IP67 rating, suitable for indoor/outdoor installation.
- Applicable Environments: Capable of operating normally in dry, humid, and rainy environmental conditions.
- Quality Test: 100% full-load burn-in test before delivery to ensure stable performance.
- Product Performance: Delivers high energy efficiency (with low power consumption), a long service life, and high reliability (resulting in low maintenance costs).
- Warranty Service: Offers a 3-year after-sales warranty. For quality-related issues, free repair or replacement services are provided during the warranty period.
Our Advantages
- We have more than 20 years’ experience
- More than 100 foreign customers which have cooperated with our company for more than 3 years
- Small MOQ, helping you to cooperate with our company step by step.
- Warranty: 3 years warranty, as soon as we confirm the defective products,we will give new ones to customers in the following order
- Solving the problems for customers directly.
Our Services
- Replied in 24hrs
- Answer all your enquires in fluent English
- OEM & ODM are welcome
- Distributoership are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private informaton
- Provide lifelong warranty
- Fast delivery time: We will keep stock for some quantity of products;For samples orders,we can send out the products as soon as we get the payment;For big orders,usually the delivery time is within 7 working days;OEM and ODM orders,within 15 working days.
FAQ
1.Q;Why do you choose us?
A:We have over 20 years experience of design and produce led products for customers all over the world. We offer custom made led products with free design,and we have own factory as well as a research and design team,which can meet the diverse needs of our customers.
2.Q:Can I have a sample order for LED Power Supply?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
3.Q:Do you have any MOQ limit for LED Power Supply orders?
A: Low MOQ, 1pc for sample checking is available
A: Low MOQ, 1pc for sample checking is available
