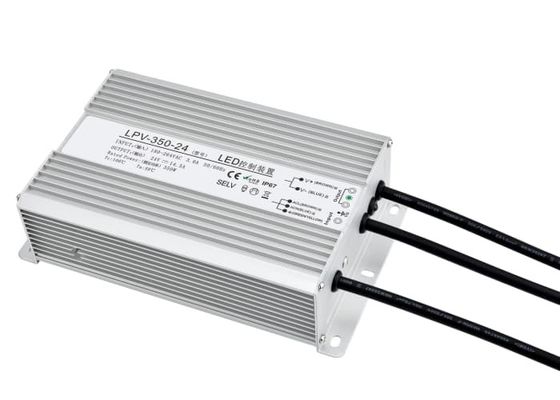

LED Switching Power Supply Power Adapters Stable Voltage 12V 24V 36V 48V 350W LED Switching Power Supply
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ip Class | IP67/IP65 | Items Name | Led Power Supply |
|---|---|---|---|
| Shell Material | Aluminium Alloy | Operating Temperature | -20°C To 60°C |
| Product Size | 240*69*43mm | Certifications | CE/FCC/RoHS |
| Output Power | 350W | Color | Silver |
| Protection | Short Circuit/Over Temperature/Over Load | Efficiency | 92% |
| Highlight | waterproof LED power supply 350W,LED switching power supply 12V,stable voltage LED adapter 48V |
||
Product Description
LED Switching Power Supply Power Adapters Stable Voltage 12V 24V 36V 48V 350W LED Switching Power Supply
Product Description
| Modle | XH-LPV-350W |
| Output current range | 12V/24V/36V/48V |
| DC output power | 350W |
| AC Input Current |
3.5A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) |
| Dimesion |
240*69*43mm(L*W*H) |
| Efficiency |
92% |
| Weight |
1.26kg |
Description
The XH-LPV-500W Series is a waterproof AC-to-DC LED driver power supply designed with constant voltage and constant power output. It operates on a wide AC input voltage range of 180~264VAC and offers a full range of output options including 12V, 24V, 36V, and 48V.
With a conversion efficiency of up to 93%, it features a fan-less design that operates via natural air convection cooling within a case temperature range of -20°C to +60°C. The metal housing and high IP65/IP67 protection rating make the XH-LPV-500W Series suitable for both indoor and outdoor applications. It is equipped with a long-life aluminum electrolytic capacitor rated at 105°C.
Key Advantages
- Output Mode: Features flexible switching between constant voltage and constant power, guaranteeing stable power supply for loads such as LED lamps and displays.
- Input Voltage: Boasts a wide input range of 180~264VAC and 240~373VDC. It adapts to grid fluctuations across different regions, eliminating the need for additional voltage regulators.
- Output Mode: Supports flexible switching between constant voltage and constant power to ensure stable supply for loads like LED lights/screens.
- Input Voltage: Wide 180~264VAC range,240~373VDC adapts to grid fluctuations in different regions without extra voltage regulators.
- Cooling: Natural air cooling (no fans) reduces noise and failure risks from cooling components.
- Housing: Fully enclosed aluminum alloy shell, offers good heat dissipation, corrosion/impact resistance, and dust protection.
- Protection: Full potting, IP65/IP67 rating, suitable for indoor/outdoor installation.
Applicable Environments: Works in dry, humid, and rainy conditions. - Quality Test: 100% full-load burn-in test before delivery to ensure stable performance.
- Performance: High efficiency (low power consumption), long lifespan, and high reliability (low maintenance cost).
- Warranty: 3-year after-sales warranty for free repair/replacement due to quality issues.
