SMD3535 LED Module with 120° Viewing Angle 0.3W Power Dissipation 12V DC for Advertising Channel Letter
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color Temperature | RGB,6000-6500K,2700-7000K,3000~8000K,3000K/4000K/6000K | Emitting Color | Natural White,Cool White,Tri-Color(Red-Blue-Green),Blue,pure White |
|---|---|---|---|
| Chip Material | InGaN,AlGaInP,GaP,Epistar,5050 Rgbw Led | Viewing Angle(°) | 120 |
| Type | LED Modules | Power Dissipation | 0.3W |
| Luminous Flux(lm) | 150lm,60-66lm,2805-2992LM,900~1000Lm /1100~1200Lm,155 | Luminous Intensity | High Bright,100lm/w,High Intensity,6000-7000mcd,10000 |
| Storage Temperature(℃) | -40 - 60,-25 - 60,-40 - 80,-30 - 60,-20 - 60 | Warranty | 2 Years |
| Application | Advertising Channel Letter,etc,Light Box Back Lighting,office,Decorative Lighting | Product Name | Injection Led Module,ws2811 3 Chips 5050 Led Smd Module Light,RGB Color Led Pixel,2835 Led Module,80X150degree 3030 Led Light Module For SKD Led Street Light |
| Led Qty | 3pcs,3LEDs,64pcs,56,50PCS/string | IP Grade | IP65,IP67 Waterproof Led Module |
| Led Type | SMD3535,led Module,RGB COB,SMD5050RGB,WS2811 | ||
| Highlight | 120° Viewing Angle LED Light Module,0.3W Power Dissipation SMD3535 LED Module,12V DC Injection LED Module |
||
Product Description

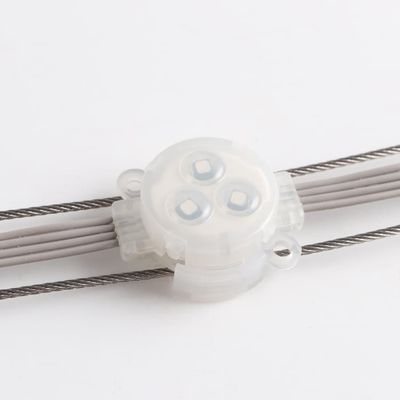

SMD3535 LED Module Signage Light
High quality LED module with outdoor lens, 0.3W power and 12V operation, ideal for signage and decorative lighting applications.
Product Specifications
| Feature | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Miracle Beam |
| Certification | CE and ROHS |
| Model Number | SMD3535 |
| Power | 0.3W/module |
| Color Temperature | RGB, 3000-4000K |
| Viewing Angle | 120°, 160° |
| Luminous Intensity | High Bright (100lm/w) |
| Operating Temperature | -20°C to 60°C |
| Warranty | 2 Years |
| Voltage | DC 12V |
Key Features
- High brightness with excellent luminous efficiency
- Wide viewing angles (120°-160°)
- Durable construction for outdoor use
- Energy efficient with low power consumption
- Long service life (>50,000 hours)
- Environmentally friendly (no lead or mercury)
Applications
- Advertising channel letters
- Light box back lighting
- Office decorative lighting
- Signage and display lighting
- Acrylic product illumination
Ordering Information
| Item | Details |
|---|---|
| Minimum Order Quantity | 1PCS |
| Price | $0.72 USD |
| Packaging Details | 62cm × 40cm × 22.5cm |
| Delivery Time | 5-15 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 100,000 units per month |

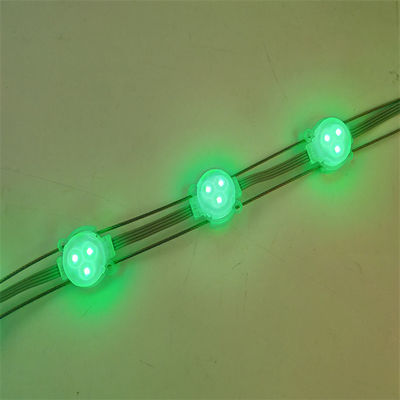

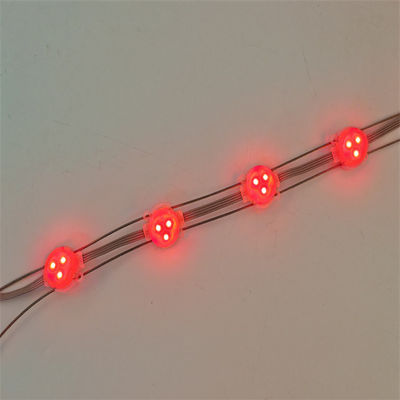

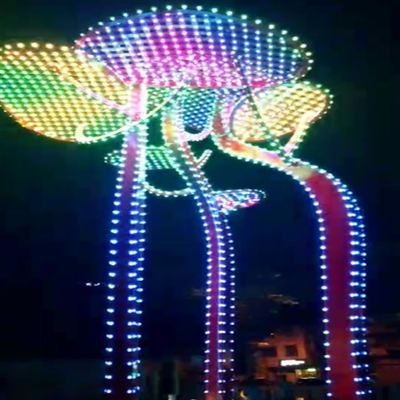

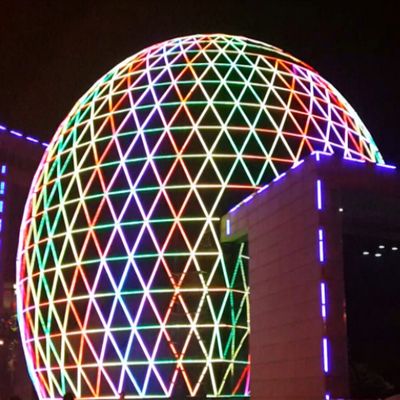

Product Images
Frequently Asked Questions
Q: How do you ensure product quality?
A: We implement three quality control processes: raw material inspection, mid-production inspection, and final testing after 12 hours of aging.
Q: What if there are quality issues during warranty?
A: Please provide photos/videos as evidence and we will address the issue promptly.
Q: Do you offer OEM/ODM services?
A: Yes, we can customize products with your logo on both the lights and packaging.
Q: What are your shipping options?
A: We offer express shipping for small orders and sea/air freight for bulk orders, depending on urgency.
Our Services
- 24-hour response to inquiries
- Professional OEM/ODM support
- Complete protection of your design and market information
- Lifelong product support
- Programming services available
