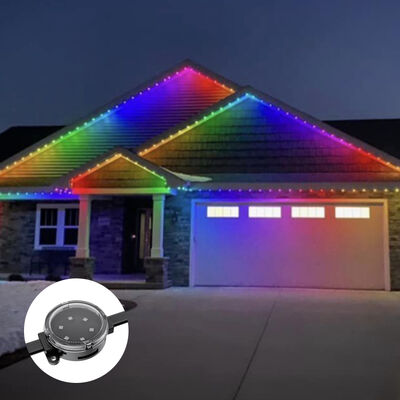

40mm DMX512 Addressable IP67 Waterproof LED Point Pixel Light for Architectural Lighting
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | WNRLN |
| Certification | CE, RoHS |
| Model Number | XH-40RGBW-IP67 |
| Minimum Order Quantity | 1000 Pieces |
| Price | Negotiate |
| Packaging Details | Carton |
| Delivery Time | 3-5 working days for stock, 15-25 days for production |
| Payment Terms | T/T,PayPal,Western Union |
| Supply Ability | 300000 Pieces per Month |
Product Details
| LED Chip | SMD 5050 RGBW 4-in-1 | Pixel Diameter | 40mm |
|---|---|---|---|
| Control Protocol | DMX512 Addressable | Input Voltage | DC24V |
| Power Consumption | 2W Max Per Pixel | Waterproof Rating | IP67 |
| Beam Angle | 120 Degree | Housing Material | UV-Resistant PC + Aluminum Base |
| Lifespan | 50000 Hours | Operating Temperature | -20 Degree To +60 Degree |
| Highlight | DMX512 Addressable RGBW Dot,IP67 Waterproof Point Light,40mm High Brightness Pixel |
||
Product Description
40mm DC24V DMX512 Addressable RGBW IP67 Waterproof LED Point Pixel Light High Brightness Architectural Lighting
Product Overview
Professional 40mm DMX512 addressable LED point pixel light featuring RGBW 4-in-1 high brightness output and IP67 waterproof durability. Engineered for architectural media facades, bridge lighting, and permanent outdoor decorative installations.
Key Specifications
| Pixel Diameter | 40mm |
| LED Type | SMD 5050 RGBW 4-in-1 High Brightness |
| Control Protocol | DMX512 Addressable |
| Input Voltage | DC24V |
| Power per Pixel | 2W Max |
| Waterproof Rating | IP67 |
| Beam Angle | 140 Degree |
| Housing Material | UV-Resistant PC + Aluminum Base |
| Lifespan | 50000 Hours |
| Certification | CE, RoHS |
High Brightness RGBW Output
Equipped with premium SMD 5050 RGBW LEDs on an aluminum substrate for superior heat dissipation and sustained brightness. The independent 3000K white channel delivers pure neutral white without RGB mixing, enabling both vivid colors and clean white illumination from the same pixel.
DMX512 Addressable Control
Each 40mm pixel operates as an independent DMX512 node consuming 4 channels (R/G/B/W). Auto-addressing with daisy-chain topology supports up to 170 pixels per universe. Compatible with Madrix, Resolume Arena, xLights, and all standard DMX consoles. Signal auto-repeating at each node ensures reliable data transmission over extended cable runs.

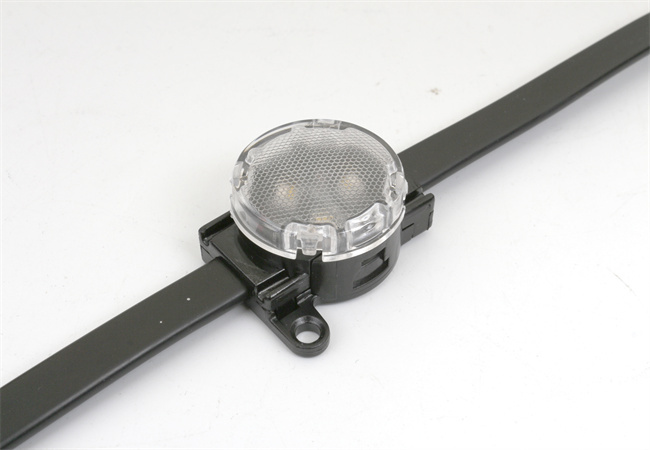

IP67 Robust Construction
UV-resistant PC lens with aluminum base plate and dual silicone seals achieves IP67 waterproof protection. The aluminum base enhances thermal management, extending LED lifespan in continuous outdoor operation. Rated for -20°C to +60°C ambient temperature.

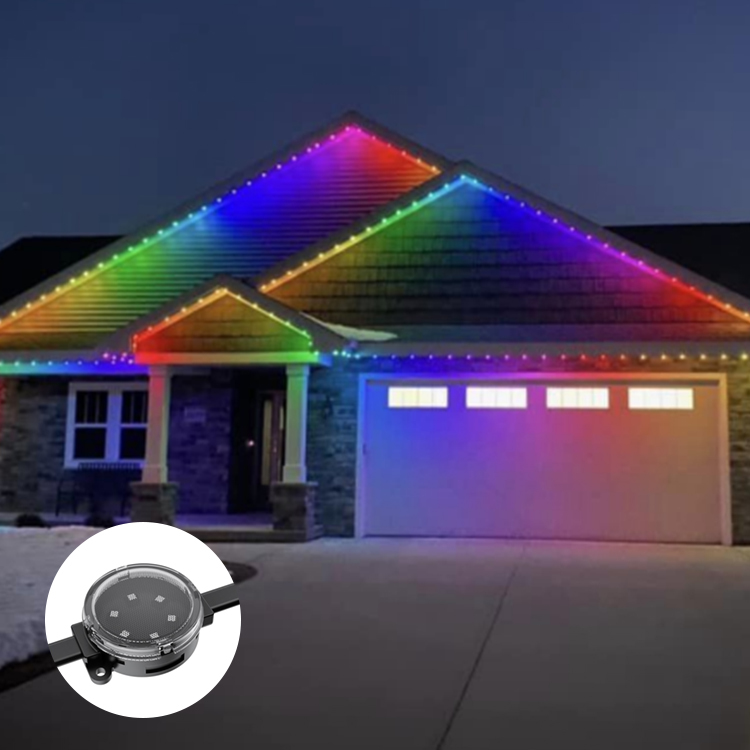

Applications
- Architectural Facade Media Screens
- Bridge and Landmark Illumination
- Commercial Building Exterior Lighting
- Amusement Park and Theme Park Displays
- Outdoor Stage and Event Lighting
- Holiday Decorative Light Shows
Inquire today for DMX channel maps, project specifications, and volume pricing. OEM/ODM custom configurations available.
