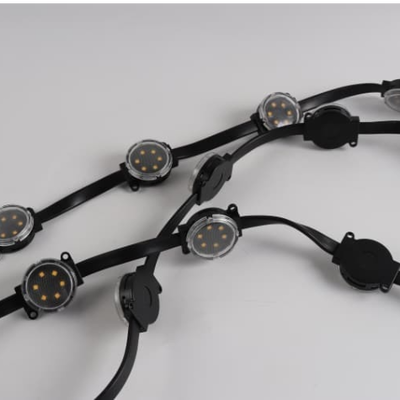

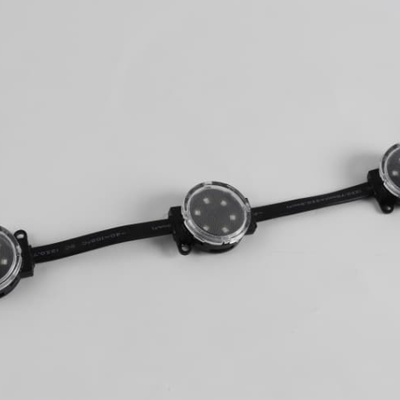

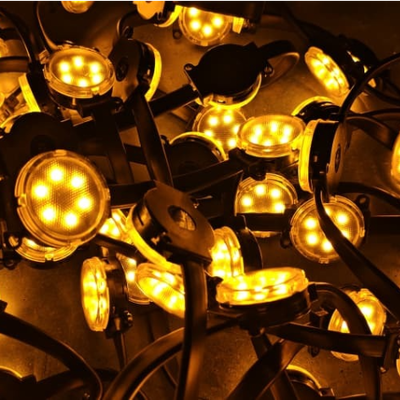

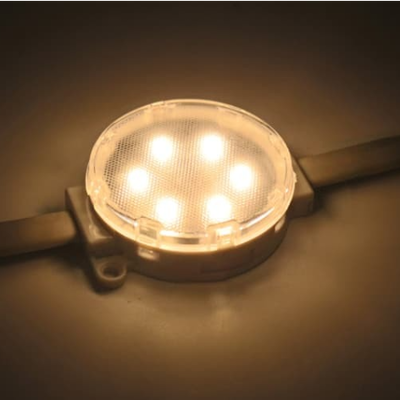

DC24V 50mm SMD3535 LED Point Light 6LEDs IP67 Waterproof DMX512 Addressable Pixel for Outdoor Matrix Display Screen
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Miracle Bean |
| Certification | CE ROHS EMC EPR |
| Model Number | XH-K5006M24-A1b |
| Minimum Order Quantity | 5000 Pieces |
| Price | negotiate |
| Packaging Details | Miracle Bean branded color box with EPE foam insert, export-grade corrugated carton |
| Delivery Time | 7-15 days for production |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 300000 Pieces per Month |
Product Details
| LED Type | SMD3535 | LED Quantity | 6 LEDs |
|---|---|---|---|
| Diameter | 50mm | Working Voltage | DC24V |
| Power Consumption | 1.2W | Control Protocol | DMX512 |
| Viewing Angle | 120° | Protection Grade | IP67 |
| Shell Material | PC Anti-UV Bayer Germany | Lifespan | 50,000 Hours |
| IC Chip | DMX512 | Color | R/G/B |
| Operating Temperature | -20°C To 60°C | Warranty | 3 Years |
| Model | XH-K5006M24-A1b | ||
| Highlight | RGBW Matrix Display Pixel Light,DMX512 Addressable 50mm LED Module,IP67 Waterproof Outdoor Screen Lighting |
||
Product Description
DC24V 50mm SMD3535 LED Point Light 6LEDs IP67 Waterproof DMX512 Addressable Pixel for Outdoor Matrix Display Screen
High-power RGBW LED point light with dedicated white channel for superior color rendering and brightness. Designed specifically for outdoor matrix display screens, large-scale media facades, and architectural lighting projects requiring DMX512 pixel-level control.
Product Specifications
| Model | XH-K5006M24-A1b |
| LED Type | SMD3535 |
| LED Quantity | 6 LEDs |
| Diameter | 50mm |
| Working Voltage | DC24V |
| Power Consumption | 1.2W |
| Control Protocol | DMX512 |
| Viewing Angle | 120° |
| Protection Grade | IP67 |
| Shell Material | PC Anti-UV (Bayer Germany) |
| Lifespan | 50,000 hours |
| IC Chip | DMX512 |
| Color | R/G/B |
| Operating Temperature | -20°C to 60°C |
| Certification | CE, ROHS, EMC, EPR |
| Warranty | 3 Years |
Key Features
- SMD3535 LEDs with dedicated white channel for pure whites and wide color gamut
- DMX512 addressable protocol for seamless integration with professional lighting control systems
- DC24V low-current design enables longer cable runs without voltage drop issues
- IP67 waterproof rated with German Bayer PC anti-UV shell for long-term outdoor durability
- Parallel connection design with individual pixel addressing for matrix display applications
- 50,000-hour rated lifespan with stable color and brightness performance
Applications
- Outdoor LED matrix display screens
- Large-scale media facades and video walls
- Building exterior dynamic lighting
- Amusement park and theme park lighting
- Bridge and landmark illumination projects
Our Advantages
- Over 12 years of professional LED pixel light manufacturing experience
- Established long-term partnerships with 100+ international clients
- Flexible minimum order quantity for gradual business growth
- 3-year quality warranty with free replacement for defective products
- Professional engineering support for custom lighting solution design
Frequently Asked Questions
Do you support OEM and ODM customization?
Yes, we have over 18 years of OEM/ODM experience. Custom shell colors, cable lengths, and branding are available.
What is the typical delivery time for bulk orders?
Sample orders ship within 3-5 working days. Bulk orders within 7 working days. OEM/ODM orders within 15 working days.
Can you provide technical support for DMX512 integration?
Yes, our engineers provide comprehensive guidance on DMX512 controller connection, addressing configuration, and control software setup.
