12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle

  • 12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle
  • 12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle
  • 12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle
  • 12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle
Place of Origin Guangdong, China
Brand Name XH LED
Certification CE, RoHS, IP67
Model Number XH-MD1201C05
Minimum Order Quantity 1000 Pieces
Price negotiate
Packaging Details Anti-static PE bag with foam insert, export-grade corrugated carton, 1000pcs per carton
Delivery Time 3-7 working days for stock, 15-25 days for production
Payment Terms T/T,L/C,PayPal,Western Union
Supply Ability 500000 Pieces per Month
Product Details
Light Source Type SMD5050 Color RGB
Power 0.3W Voltage DC5V
Beam Angle 160° Protection Grade IP67
UV Resistance Level 4 Flame Retardant Rating V-0
Impact Resistance IK10 Operating Temperature -20°C To 60°C
Electrical Safety Class Class III Average Lifespan >30000h
Hole Size 12mm Material PC Housing
Wire Type 4P Gray Flat Cable Connection Type Waterproof Male/Female Connector
Installation Method Through-Hole Control Method RGB Internal Or External Control
Luminous Flux 6LM (RGB Bright White) Single Unit Weight 5.5g
Highlight

IP67 Waterproof Bayonet Mount

,

SMD5050 RGB Internal Control

,

Through-Hole Anchor Installation
Leave a Message
Product Description

12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle

The XH-MD1201C05 is a high-performance RGB SMD5050 LED point light designed for architectural and decorative lighting applications. Featuring a special bayonet anchor design, it provides quick and secure through-hole installation on various板材 including aluminum composite panels, acrylic sheets, and iron plates with thickness ranging from 0.8mm to 3.0mm.

Key Features

  • Special Bayonet Snap-Fit Design: Tool-free installation, compatible with 0.8–1.5mm standard plates and 0.8–3.0mm thick plates (3.0mm requires special note when ordering)
  • SMD5050 High-Brightness LED Chip: Optional chip brands include Sanan, Epistar, Osram, and Cree — delivering 6LM luminous flux with vivid RGB color mixing
  • IP67 Waterproof & IK10 Impact Resistant: Fully sealed PC housing with V-0 flame retardant rating and Level 4 UV resistance, built for extreme outdoor environments
  • Flexible Control Options: Supports single-string internal IC control for simple setups or multi-string external DMX control for large-scale synchronized light shows
  • 160° Wide Beam Angle: Ensures uniform light distribution, ideal for facade wash lighting and contour outlining
  • Industry-Standard 12mm Hole Size: Precision-machined to 12+0.2/-0mm tolerance for consistent, reliable mounting
  • 4P Gray Flat Ribbon Cable: Easy daisy-chaining with waterproof male/female connectors for fast on-site assembly

Applications

  • Building facade decorative lighting
  • Holiday and festival ambiance creation
  • Architectural contour and edge outlining

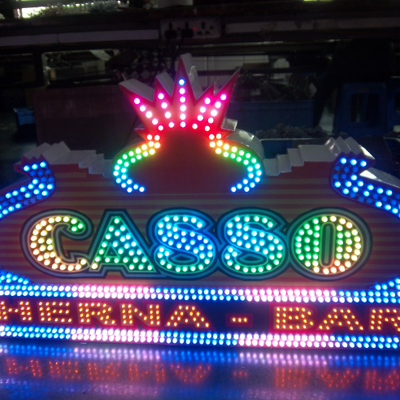

  • Commercial signage and logo backlighting
  • Amusement park and theme park lighting
  • Bridge and landscape lighting projects

Technical Specifications

Light Source SMD5050 (Sanan/Epistar/Osram/Cree optional) Color RGB
Power 0.3W per unit Voltage DC5V (ripple <100mV)
Luminous Flux 6LM (RGB bright white mode) Beam Angle 160°
Protection Grade IP67 Impact Resistance IK10
UV Resistance Level 4 Flame Retardant V-0
Operating Temperature -20°C to 60°C Electrical Safety Class III
Average Lifespan >30000 hours Salt Spray Test Anti-salt spray qualified
Hole Size 12+0.2/-0mm Unit Weight 5.5g
Material PC housing Connection Waterproof male/female connectors
Wire 4P gray flat ribbon cable Installation Through-hole snap-fit

Manufactured by Shenzhen Xinhe Optoelectronics Lighting Co., Ltd. — a trusted supplier of professional LED lighting solutions since 2010.


Product Show

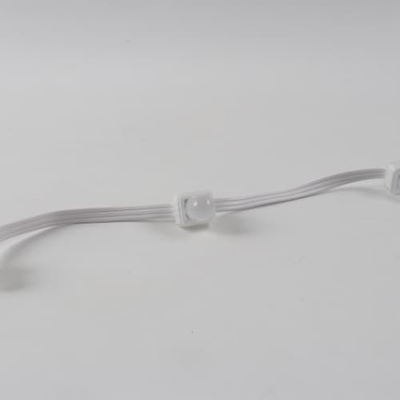

12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle

12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle

12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle

12mm RGB SMD5050 LED Point Light IP67 DC5V Through-Hole Anchor Pixel Light with 160 Beam Angle
