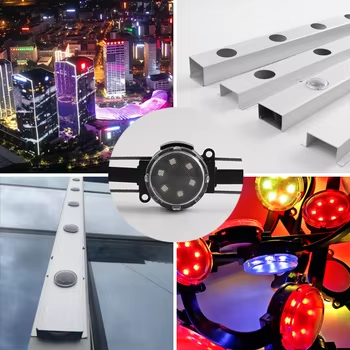

AC48V RGB LED Pixel Light Permanent Holiday Light 50mm IP67 Point Lamp With Aluminum Track
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | XINHE |
| Certification | CE, RoHS |
| Model Number | XH-PT50RGB-48 |
| Minimum Order Quantity | 200 Pieces |
| Price | Negotiate |
| Packaging Details | carton |
| Delivery Time | 3-7 working days for stock items, 12-18 working days for OEM orders |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 800000 Pieces per Month |
Product Details
| Product Type | RGB LED Pixel Light | Input Voltage | AC48V |
|---|---|---|---|
| Power Consumption | 1.5W Per Pixel | LED Chip | Epistar |
| Lamp Diameter | 50mm | IP Rating | IP67 |
| Beam Angle | 160 Degrees | Control Method | SPI Addressable, External Controller |
| Housing Material | Anti-UV PC With Full Potting | Mounting | Aluminum Track Channel With Screw Clips |
| Cable Length | Customization | Lifespan | 30000 Hours |
| Working Temperature | -40 To +60 Degrees Celsius | Warranty | 3 Years |
| Application | Permanent Holiday Light Track, Fascia, Soffit, Commercial Facade | ||
| Highlight | Permanent Holiday Light,AC48V RGB Pixel Light,IP68 Point Lamp Aluminum Track |
||
Product Description
AC48V RGB 50mm LED Pixel Light with Aluminum Track for Permanent Holiday Light
Designed for permanent holiday light systems that remain installed year-round, this 50mm RGB pixel light sits inside a slim aluminum track and delivers even, addressable color along roof lines, fascia and commercial facades. The AC48V input keeps current low and voltage stable on long runs, so 30 to 40 meter roof sections stay uniform without the color shift that low-voltage DC runs suffer on tall buildings.
Key Features
- Permanent holiday light ready: full potting and anti-UV PC body handle direct sun, rain, snow and temperature swings.
- AC48V long-run stability: lower current per run means less voltage drop and even brightness across long fascia lines.
- 50mm large lens: strong visible output per pixel, well suited to 150mm to 250mm spacing on eaves and canopies.
- IP67 protection: fully sealed pixel body for exposed fascia, coastal and low-temperature installations.
- Aluminum track mounting: screw-fixed channel keeps equal pixel spacing and gives a clean finished line.
- Addressable control: SPI protocol with 256 grey levels per channel, compatible with common holiday light controllers and mobile apps.
Specifications
| Model No. | XH-K5006 |
| Input Voltage | AC48V |
| Power | 1.5W per pixel |
| LED Chip | Epistar SMD5050 RGB 3-in-1 |
| Lamp Diameter | 50mm |
| IP Rating | IP67 |
| Beam Angle | 160° |
| Control | SPI addressable, external controller |
| Housing | Anti-UV PC, fully potted |
| Mounting | Aluminum track channel with screw clips |
| Cable | 150mm spacing, 4-pin waterproof connector |
| Lifespan | 50000 hours |
| Working Temperature | -40°C to +60°C |
| Certification | CE, RoHS |
| Warranty | 3 years |
Applications

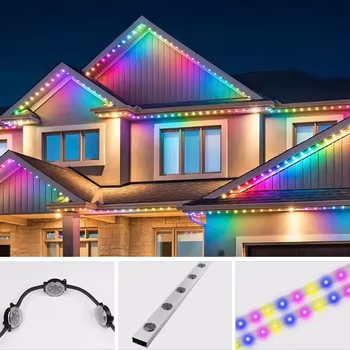

Permanent holiday light track systems on single and two-story homes, fascia and soffit outlines, commercial storefront and canopy trim, hotel and resort facade accents, and year-round architectural lighting that changes with holiday programs.
Installation Notes
Fix the aluminum track to the fascia first, then press each pixel into the channel and lock with clips. Keep the AC48V power supply within 70% of its rated load, use one controller per 35 meter segment, and terminate unused cable ends with the supplied IP68 cap.
Packing and Delivery
200 pcs per reel with waterproof connectors, aluminum track packed separately in foam-lined export carton. Stock items ship in 3-7 working days; OEM orders with custom track length or pixel spacing take 12-18 working days.
Why Buy From Us
- 20 years of LED pixel manufacturing with in-house potting and aging lines
- CE and RoHS certified, 48-hour aging test on every production batch
- OEM and ODM: custom track length, cable spacing, connector and packaging
- 3-year warranty with free replacement for confirmed defects
Send us your roof length and controller model for a permanent holiday light track quotation.
