XH-K4006P48 RGBW LED Point Light Source 2W DC48V DMX512 IP67 IK10 PC Housing 120 Degree

  • XH-K4006P48 RGBW LED Point Light Source 2W DC48V DMX512 IP67 IK10 PC Housing 120 Degree
  • XH-K4006P48 RGBW LED Point Light Source 2W DC48V DMX512 IP67 IK10 PC Housing 120 Degree
  • XH-K4006P48 RGBW LED Point Light Source 2W DC48V DMX512 IP67 IK10 PC Housing 120 Degree
  • XH-K4006P48 RGBW LED Point Light Source 2W DC48V DMX512 IP67 IK10 PC Housing 120 Degree
Place of Origin Shenzhen, Guangdong, China
Brand Name Miracle Bean
Certification CE, RoHS compliant
Model Number XH-K4006P48(RGBW)-A1b
Minimum Order Quantity 1000 Pieces
Price negotiate
Packaging Details Anti-static bag with shock-proof foam and export-grade corrugated carton
Delivery Time 7-15 working days after deposit
Payment Terms T/T,L/C,Western Union
Supply Ability 50000 Pieces per Month
Product Details
Product Series K Series Point Light Source LED Type SMD3535
Colour RGBW Chip Brand Epistar / Osram / Cree (selectable)
Power 2W Luminous Flux 35 LM (RGB + White)
Beam Angle 120 Degree Control Method DMX512
Input Voltage DC48V, Ripple Below 100mV Protection Rating IP67
UV Resistance Grade Grade 4 Flame Retardant Grade V-0
Impact Resistance IK10 Operating Temperature -20 To 60 C
Electrical Safety Class Class III Average Lifespan >30000 Hours
Salt Spray Test Salt Spray Resistant Refresh Rate 3.6 KHz
Single Lamp Weight 20 G Housing Material Bayer PC
Cable Sheathed Cable 1.5 / 1.0 / 0.75 Sq.mm Core Connection Waterproof Male/female Connector, Lamp String
Installation Method Perforation, Profile, Stainless Steel Wire Base, Screw Mounting Panel Thickness 0.8-1.5mm, 0.8-3.0mm (3.0mm Special Remark)
Accessories Steel Wire, Screws, Controller, Power Supply
Highlight

IP67 Waterproof PU Sealed Housing

,

DMX512 RGBW SMD3535 Point Light

,

IK10 PC Shell Salt Spray Resistant
Leave a Message
Product Description

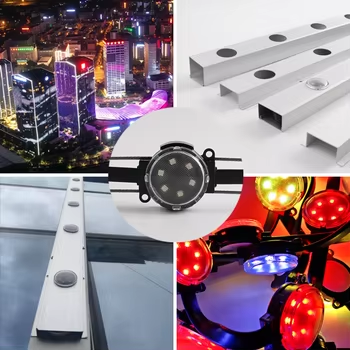

XH-K4006P48 RGBW LED Point Light Source

The XH-K4006P48(RGBW)-A1b is a 2W RGBW LED point light source engineered for facade outlines, media facades, landscape and architectural accent lighting. Built on an SMD3535 RGBW platform driven by DMX512, it delivers 35LM of balanced RGB plus pure white output with a 120 degree beam, making it equally suited to colour-changing shows and clean white architectural washes.

Product Features

  • Flush front-clip cover design - the luminous surface sits level with the mounting surface for a concentrated, uniform light effect.
  • Low-voltage long-run cabling - 1.5 sq.mm sheathed cable supports 80 metres single-end feed with 8 lamps per metre (1.0 sq.mm: 53 metres), with no colour shift and greatly reduced wiring and material cost.
  • Imported high-grade LED chips - high brightness and stable output; chip brands selectable (Epistar / Osram / Cree).
  • Bayer PC housing from Germany - no yellowing within 10 years; the hemispherical luminous surface is self-cleaning.
  • AB composite PU potting - hard surface, strong impact resistance, high waterproof rating IP67.
  • Multiple installation options - adhesive, profile, perforation, stainless steel wire and screw mounting. Perforated mounting suits 0.8-1.5mm and 0.8-3.0mm panels (3.0mm thickness requires special remark), including aluminium, acrylic and iron sheet.

Technical Specifications

ModelXH-K4006P48(RGBW)-A1bProduct SeriesK Series Point Light Source
LED TypeSMD3535ColourRGBW
Chip BrandEpistar / Osram / Cree (selectable)Power2W
Luminous Flux35 LM (RGB + white)Beam Angle120 degree
ControlDMX512Input VoltageDC48V, ripple below 100mV
Protection RatingIP67UV ResistanceGrade 4
Flame RetardantV-0Impact ResistanceIK10
Operating Temperature-20 to 60 CElectrical Safety ClassClass III
Average Lifespan>30000 hSalt SpraySalt spray resistant
Refresh Rate3.6 KHzWeight20 g per lamp
Housing MaterialPC (Bayer)PottingAB composite PU
CableSheathed cable, 1.5 / 1.0 / 0.75 sq.mm core optionsConnectionWaterproof male/female connector, lamp string
InstallationPerforation, profile, stainless steel wire base, screwAccessoriesSteel wire, screws, controller, power supply

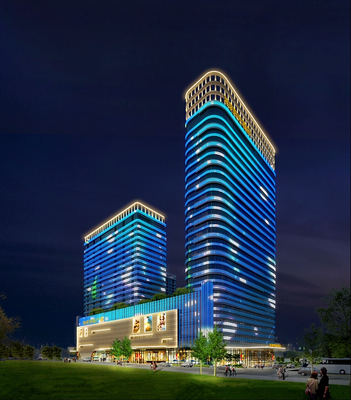

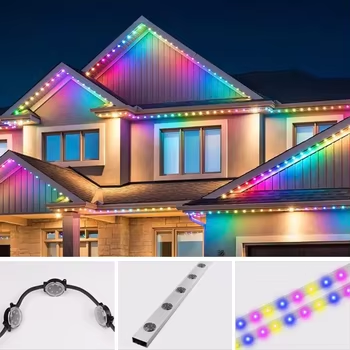

Applications

Building facade outlines, media facades, bridge and landscape lighting, theme park and amusement lighting, commercial signage and stage effects where a durable IP67 point light source with DMX512 pixel control is required.

Why Choose This Point Light Source

Ten-year colour stability from the Bayer PC shell, IK10 impact resistance and salt spray resistance make the K series point light source suitable for coastal and long-life outdoor projects. Direct sale from the manufacturer, Shenzhen Xinhe Optoelectronic Lighting Co., Ltd., with customisable chip brands, cable gauges and connector types.

Note: lamp spacing and single-end feeding distance depend on cable gauge. Please confirm project voltage drop with our engineering team before ordering.
