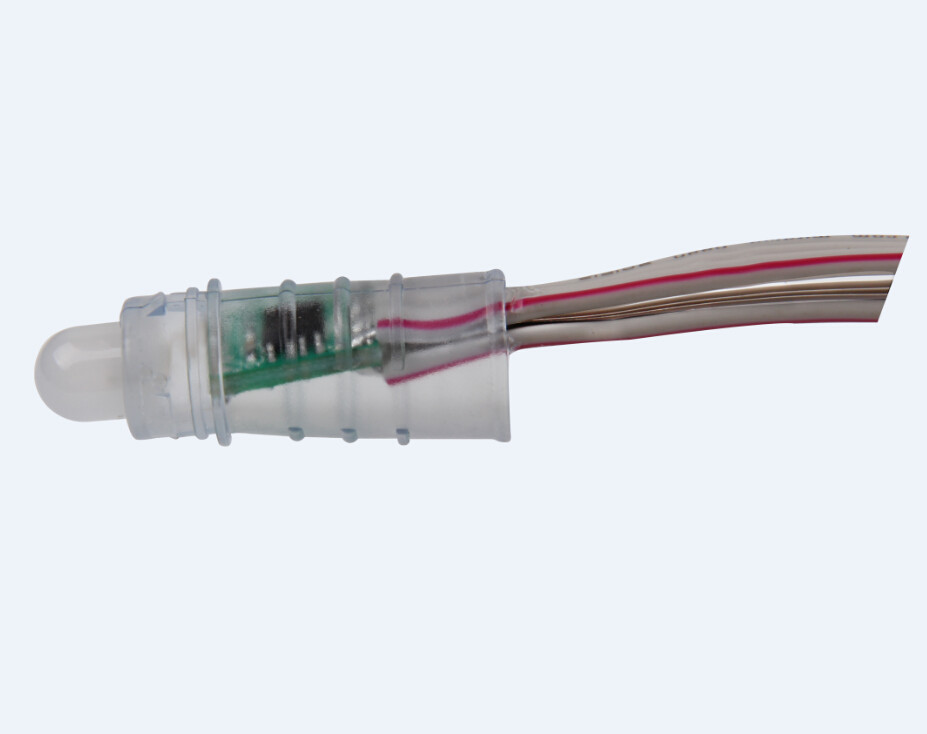

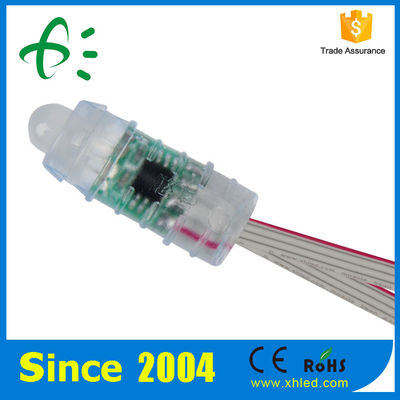

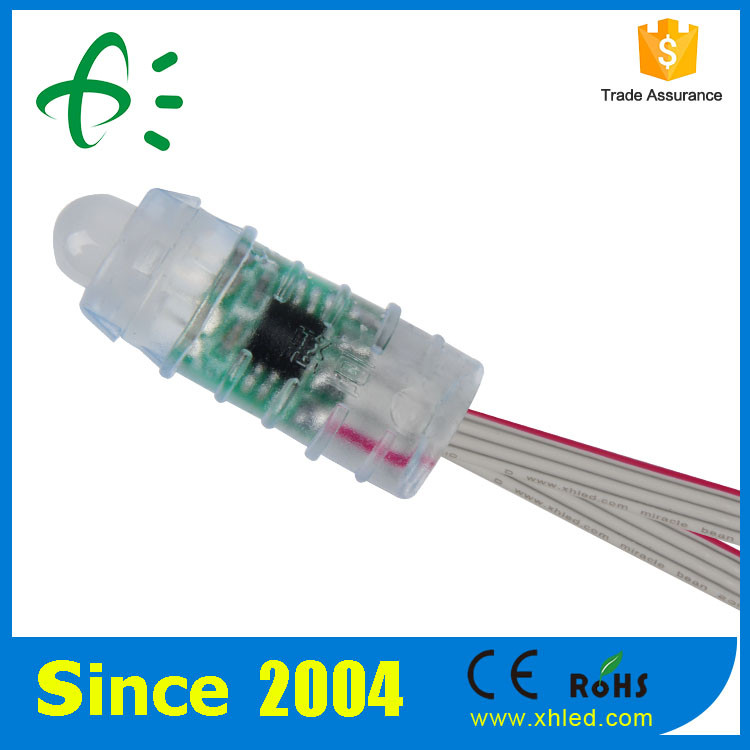

Outdoor IP67 12MM LED Pixel
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Voltage | DC5V | Power | 0.3w |
|---|---|---|---|
| Lighing Source | Epistar | Beam Angle | 120 |
| Color | Rgb | Warranty | 2 Years |
| Highlight | led pixel lights,digital rgb led pixels |
||
Product Description
Outdoor IP67 12MM Led Pixel , Epistar chips 5V rgb LED Pixel For Lighting
Parameters
| Parameter | Symbol | Condition | Range | Unit | ||||||
| Voltage of power supply | VDD | Direct current | 5 | V | ||||||
| Working temperature | Top | DC5V,50%RH | -20~+40 | ℃ | ||||||
| Working humidity | B | DC5V,25℃ | 98 | %RH | ||||||
| Viewing Angle | 2θ1/2 | 120 | ° | |||||||
| Basic color | Color | 3LEDsingle color | red,green,blue,yellow,white | |||||||
| Light attenuation rate(1000H) | —— | DC12V,25℃ | 5~8 | % | ||||||
| Internal Protection | IP | Our-door use | IP67 | |||||||
| Drilling size | D | —— | —— | MM | ||||||
| Length of wire | Ls | general | 110 | MM | ||||||
| Material of shell | plastic | |||||||||
| Color of shell | Milky white | |||||||||
| Gasket cement | epoxy resin/silicone | |||||||||
| Accessory | 5v DC power supply(Please choose a suitable power supply according to the total power) | |||||||||
| Serial product | ||||||||||
| Model No | Color | appearance | Luminance(mcd)/1pcs | wavelength | power(W/1pcs) | |||||
| Max | Min | |||||||||
| XH-126MC3S3AR-B | red | Piranha | 3600 | 3000 | 620~630nm | 1 | ||||
| XH-126MC3S3AY-B | yellow | 3600 | 3000 | 585~595nm | 1 | |||||
| XH-126MC3S3AB-B | blue | 4800 | 4200 | 455~470nm | 1 | |||||
| XH-126MC3S3AG-B | green | 12000 | 9000 | 510~525nm | 1 | |||||
| XH-126MC3S3AW-B | white | 8400 | 6000 | 6500~7000K | 1 | |||||
Applications
1. LED light-emitting letters,special shape screen
2. wall lighting,backgroud wall
3. adversing signboard,building profile lighting
4. Factory,office
5. Supper market
Our Service:
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your questions in fluent English.
3)Customized design is available.OEM&ODM are welcomed.
4)Exclusive and unique solution can be provided to our customerby our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
Customer Feedback:
1:Your Led lights give me a surprise, woo. i'll never change the supplier, you're the best that i've come across.--- Harry.Oliver (From Sergey U.)
2:The lights was fine and everything works perfectly. (From Aleksandra B.)
3:Great seller. Fast delivery. The quality of goods is excellent. I connected the wires at home and glued into place (tape included)
4:everything works beautifully. Will be buying more and I will advise all my friends. A + + + + + (From Maxim F.)
